JORC Industrial OPTIMUM Series Drain

Electronic timer controlled drain with brass or stainless steel valve bodies, rated up to 230 PSI.

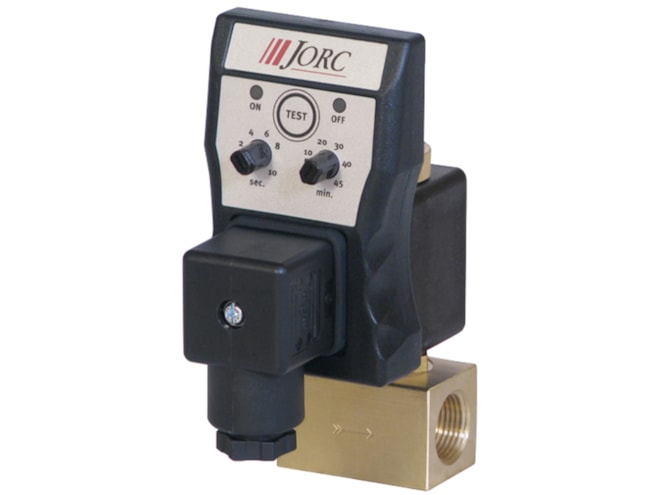

JORC Industrial Optimum Series Drain - Brass

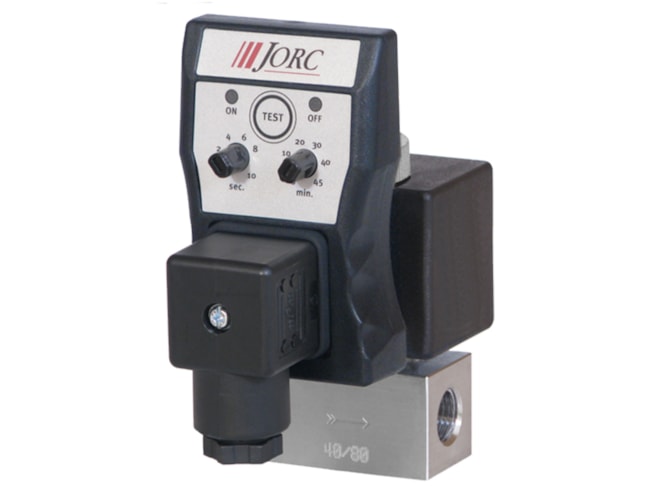

JORC Industrial Optimum Series Drain - Stainless Steel

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.

Starting Price: $135.60

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

${{ calcCost | formatCurrency }}

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

By JORC Industrial
FREE Shipping on orders of $1,000 or more
Factory Warranty and Support Available
Usually ships in 1 to 2 days

Matt Murphy

Senior Applications Specialist - 15 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

0 to 230 PSI pressure range
Timer cycle range
- On: 0.5 to 10 seconds
- Off: 0.5 to 45 minutes
Included test feature
4.5mm valve orifice
FPM valve seals
Brass or Stainless Steel valve options
NEMA4 (IP65) protection

The JORC Industrial OPTIMUM Series drain is suitable for a wide range of compressed air applications including compressors, receivers, filters, and refrigerated air dryers. The included adjustable electronic timer, direct acting solenoid valve, large orifice, and a brass or stainless steel body, the OPTIMUM Series provides reliable and compact condensate removal.

The OPTIMUM Series is easy to install, simple to adjust, and rated for pressures up to 230 PSI. Out of the box, it includes a test switch, LED on/off indication, and a serviceable valve. The large 4.5mm orifice makes this valve ideal for applications with high condensate flow rates and solid particulate contaminants.
