Overview

Features

  • Configuration:
    • 2 or 4 analog sensors
    • 2 or 4 digital sensors
    • 2 and 2 analog/digital sensors option
  • 33 to 122°F operating temperature
  • -4 to 158°F storage temperature
  • 4gb memory card
  • 24 VDC power supply, max 25 mA per sensor
  • 7 x M12 x 1.5 nickel-plated brass connections for sensor, power supply and alarm relays
  • IP 44 standard housing protection

Description

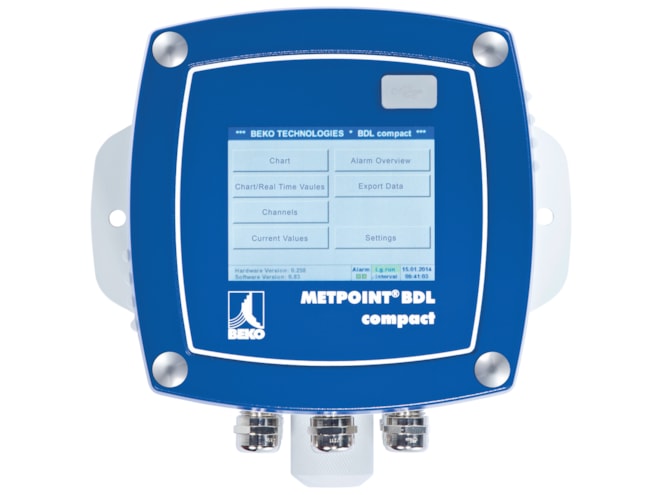

The BEKO Technologies Metpoint Compact BDL Multi-Function Monitor System includes a powder-coated aluminum housing with a polyester front faceplate. The base model includes a maximum of 4 sensor inputs per unit. Data logging includes up to 1,000,000 values per recording interval (minimum of 1 second, maximum 59 minutes and 59 seconds). The interface type is accessible by USB stick, USB cable, Ethernet / RS 485 Modbus RTU / TCP, SDI, or an integrated web server. Outputs include a connection of 4-20 mA signals of dew point and consumption sensors (with a maximum burden of <500ohms), and 2 alarm relays on 230 VAC. The display type is full color, 3.5" TFT touch panel transmissive, with graphics, charts and statistics.
