Starting at $306.00
Request Quick Quote
  • Usually ships in 1 to 2 days



  • Visual element life indication
  • Small footprint
  • Lighter and easier replacement of elements
  • Sectional draining options during servicing
  • Multiple condensate inlets
  • Service drains for easy maintenance
  • Simple installation and maintenance procedures
  • Operates with both timer controlled and zero air loss drain valves
  • Separation of mineral and synthetic lubricants, stable condensate emulsions, consult factory for polyglycol applications

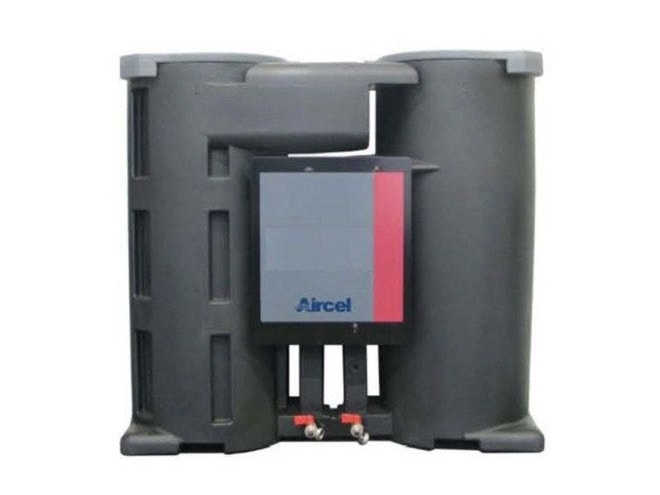

The AOWS range of oil/water separators separates oil from condensate, generated by compressed air systems. The AOWS Series achieves efficient separation of oil from condensate by means of directing the condensate through various separation stages.

As condensate flows in to the AOWS Series, the oil is filtered out through various filtration elements. The first oil adsorbing element has a clever saturation indicating feature, offering you a visual operating status of the separator at a distance.

The elements are designed to combine various types of adsorption technologies to achieve less than 10 ppm oil residue values at the output stage.

Final separation stage includes specially selected activated charcoal to polish out the remaining contaminants.
