Overview

Features

  • 3/4 or 1" piping width
  • 90 or 230ft piping length
  • Sealed Connections

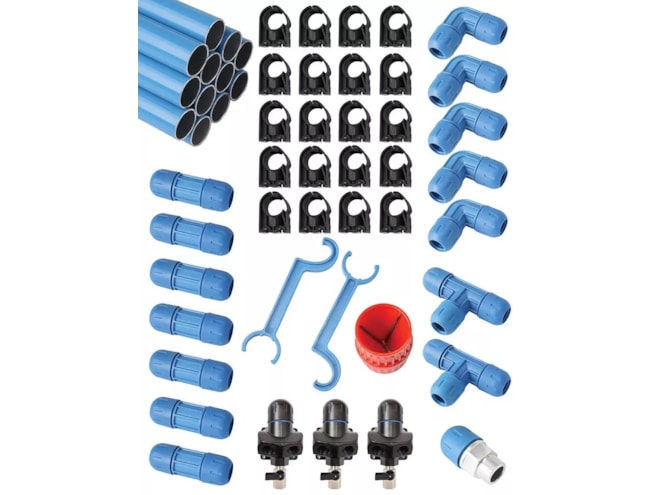

  • 3/4" x 90' and 1" x 90' systems include:
    • (12) pieces 7'6" FastPipe
    • (2) 10-pack mount clips (20 total)
    • (7) Unions
    • (5) Elbows
    • (2) Tees
    • (3) Outlets
    • (1) 3/4" Male NPT adapter
    • (2) Spanner wrenches
    • (1) Deburr tool
  • 3/4" x 230' and 1" x 230' systems include:
    • (12) pieces 19'2" FastPipe
    • (3) 10-pack mount clips (30 total)
    • (3) Unions
    • (5) Elbows
    • (4) Tees
    • (5) Outlets
    • (1) 3/4" Male NPT adapter
    • (2) Spanner wrenches
    • (1) Deburr tool

Description

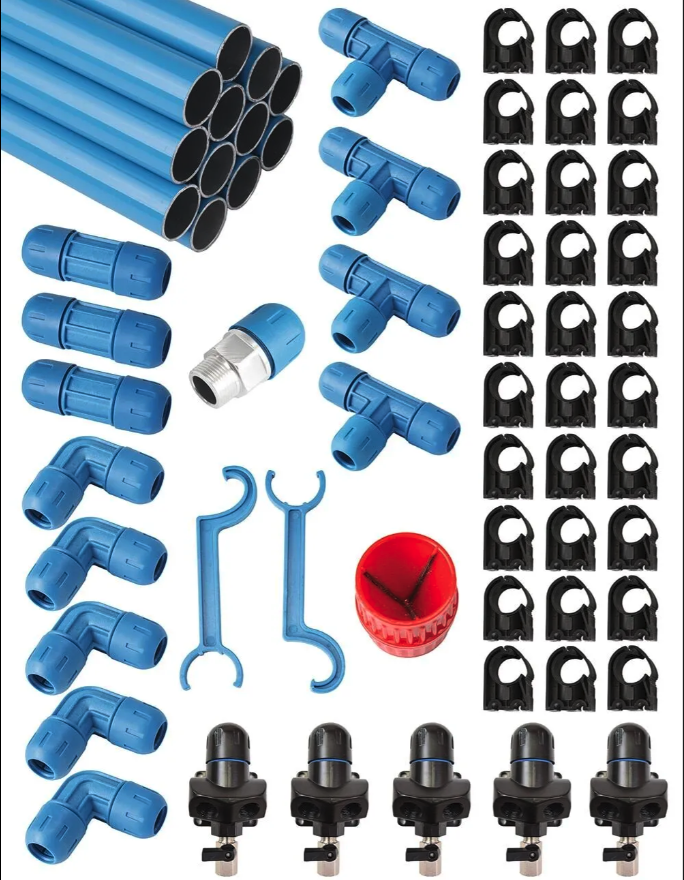

The RapidAir FastPipe Aluminum Air Piping Master Kit provides all components needed for a compressed air system's piping lines. The master kit includes four size options: 3/4" width by 90' length, 1" width by 90' length, 3/4" width by 230' length, and 1" width by 230' length.

The kit is designed for straight piping runs with minimal obstructions and a professional, blue coloring standard for compressed air lines. The full piping system is capable of supporting multiple air users, and can assist in operating heavy-duty tools. The system can be installed on a wall or hung from a ceiling.
