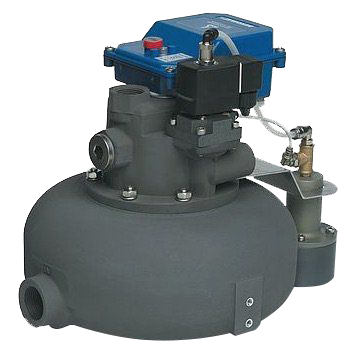

BEKO Technologies BEKOMAT NLV Series Zero Loss Condensate Drain

For centrifugal compressors with no-load valve.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $2,837.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 6,000 or 50,000 SCFM compressor capacity
  • 12,000 or 100,000 SCFM dryer capacity
  • 360 or 232 PSIG pressure rating
  • Connections:
    • 3 x 3/4" NPT
    • 2 x 3/4" NPT and 1 x 1" NPT
  • Aluminum housing
  • 115 VAC
  • 33 to 140°F operating temperature
  • Standard Viton® diaphragm

The BEKO Technologies BEKOMAT NLV Series Zero Loss Condensate Drain applies an integrated capacity sensor, smart electronics for volume-controlled discharge, and a proven pilot controlled solenoid valve to release condensate without the loss of compressed air, reducing energy costs and CO2 emissions. An integrated sieve eliminates the need for a Y-strainer, and the possibility of damage due to dirt or other particulates. A visual status indication is given on the drain and can be wired for remote access. The unit continuously monitors both level and function for autonomous operation. The aluminum housing includes no load valve and hard coating.
