Overview

Features

  • "T" flow or "Z" flow options available
  • Capacity:
    • Z flow: 2,500 to 10,000 SCFM
    • T flow: 1,700 to 10,000 SCFM
  • 4" to 10" inlet/outlet flanged connection
  • 150 PSIG pressure rating
  • Automatic float condensate drain included

Description

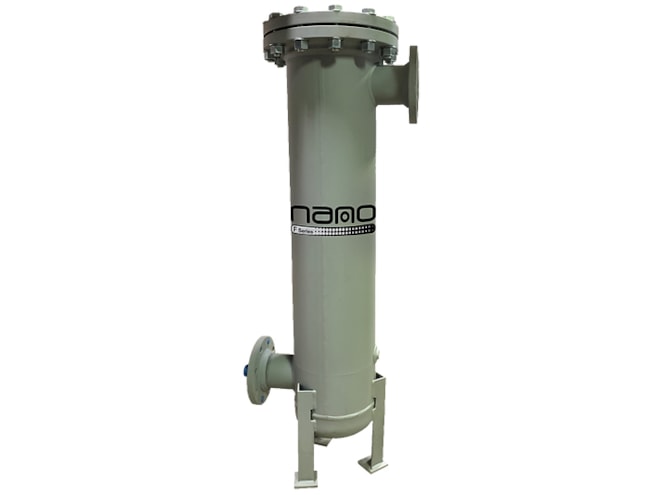

The nano-purification solutions F2 High Capacity Flanged Filter is a 1.0 and 0.1 micron particulate and coalescing filter for dust, oil and aerosol removal. It includes an AC activated carbon filter for vapor removal performance down to 0.003ppm, and is available in two flow configurations - "T" and "Z" - to fit every application. The unit is fabricated from carbon steel, externally primed and powder coated for optimum corrosion resistance, and built in accordance with ASME VIII with U-Stamp.

Applications

  • Chemical
  • Food and beverage
  • Manufacturing
  • Military
  • Oil and gas
