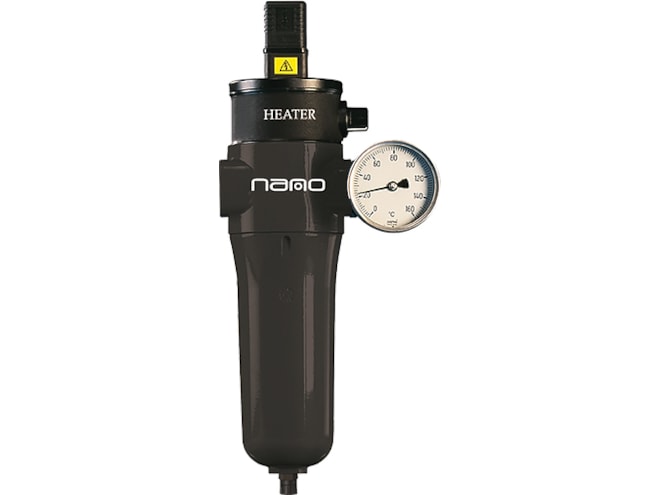

nano-purification solutions F5 Combination Filter and Heater

Designed for both industrial and breathing air applications, provides filtration and precise temperature control between 68°F and 248°F.

Retired products cannot be ordered

Please contact Compressor World for a recommended replacement

View Company Reviews

Highlights...

By nano-purification solutions
FREE Shipping
Factory Warranty and Support Available

Tara Samuel

Order Management Specialist - 10 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

27 SCFM capacity
232 PSIG pressure rating
3/8" or 1/2" inlet/outlet NPT
115/1/60 or 230/1/60 voltage
Temperature range:
- Inlet: -4 to 248°F
- Controlled output: 60 to 248°F
ISO class 1 maximum particle size
ISO class 0.1 maximum oil content
0.01 micron particle removal
0.01 ppm max oil carry over at 68°F
12 months / 8,000 hour maximum element life

The nano-purification solutions F5 Combination Filter and Heater uses an open wound heating coil and sensitive output temperature sensor to react quickly to changes in pressure and flow, ensuring a consistent temperature across a wide range of operating conditions. The compact solid state temperature controller monitors the exact outlet temperature using a bi-metallic thermometer, and displays the results on the optional temperature gauge.
