Overview

Features

  • 2 to 1110 SCFM capacity
  • Maximum working pressure:
    • 232 PSIG (3 to 177 SCFM)
    • 145 PSIG (212 to 1110 SCFM)
  • 3/8" to 2 1/2" NPT inlet/outlet connection
  • 145°F or 232° pressure rating
  • 100 to 240 VAC / 50 or 60Hz power supply requirements
  • Integrated after filter standard
  • Optional low dew point (-94°F) and pneumatic models available
  • Energy saving dew point control option available

Tech Specs

Due to the complexity of the data presented in some of the images below, describing them accurately in text is challenging. If you require further assistance, please contact one of our engineers for more detailed information.

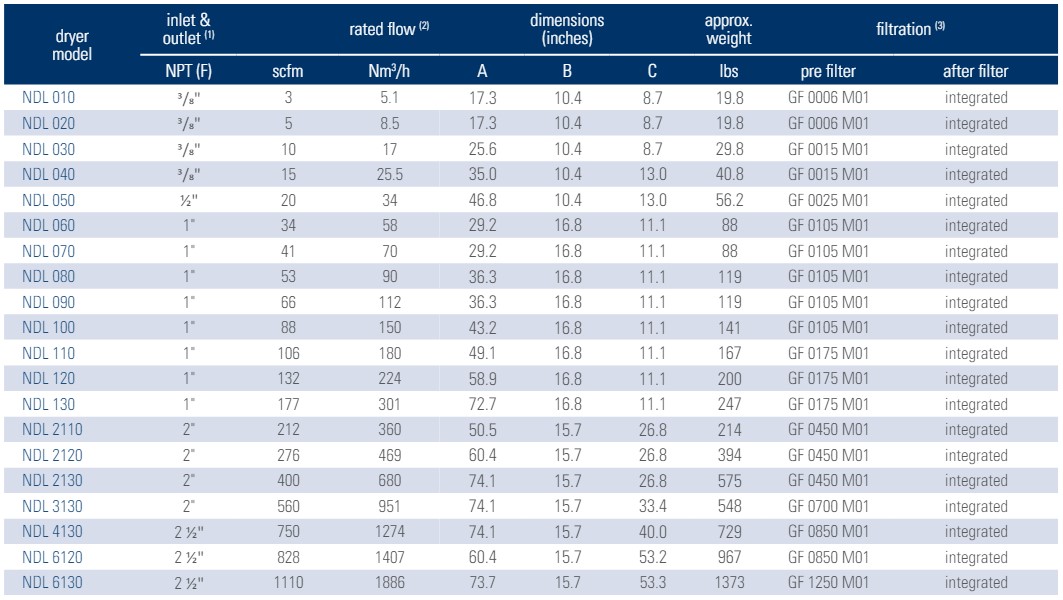

nano-purification solutions NDL Modular Desiccant Air Dryer Tech Specs

Description

The nano-purification solutions NDL Modular Desiccant Air Dryer is a snowstorm filled, ultra-high purity dryer that provides moisture and particulate protection to an air compression system. It is designed for use in the compressor room, at the point of application or integrated into original equipment. The unit operates with PLC controlled solenoid valves and unique exhaust air silencers, reducing noise levels. A digital display provides a full view of PLC operation and monitoring data.

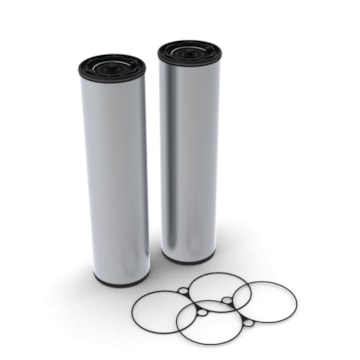

3 to 24 SCFM packages include mounting brackets for either floor or wall mounting. This packages also include an inlet water separator to eliminate the cost and pressure drop of installing a separate inlet filter in small oil-free compressor applications. The built in outlet filtration, standard for all models, eliminates the cost, pressure drop and maintenance associated with a separate after filter. D1 and D2 packages also include easily replaceable cartridges.

The PLC control system includes 'power on,' 'hours run,' and 'service required' indicators. Memory retention built into the PLC enables the controller to pick up where it left off in the drying cycle, ensuring consistently clean and dry air downstream. Compressor synchronization is a standard energy saving feature, which starts and stops the dryer with a signal from the compressor or point-of-use equipment to eliminate purge loss when drying is not required.

A low dew point (-94°F) model is available, along with a pneumatic model for the D2 and D3 ranges, offering full pneumatic control of the pressure swing adsorption technology for intrinsically safe applications.

In Stock

Part Number Price Available
NDL 040 GF-ES
$6,490.80 1 in stock

Manufacturer Stock

Part Number Price Available
NDL 030 GF
$2,441.70 20 in stock
NDL 130 GF
$9,199.80 14 in stock
NDL 120 GF
$8,432.10 6 in stock
NDL 130 GF-ES
$12,887.10 6 in stock
NDL 110 GF
$8,130.60 3 in stock
NDL 2120 GF
$12,242.70 3 in stock
NDL 2130 GF
$14,393.70 3 in stock
NDL 3130 GF
$18,543.60 3 in stock
NDL 020 GF
$2,030.40 2 in stock
NDL 040 GF
$2,803.50 2 in stock
NDL 120 GF-ES
$12,119.40 1 in stock
NDL 2110 GF
$11,212.20 1 in stock
NDL 3130 GF-ES
$22,230.90 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 days". Click here to select options
