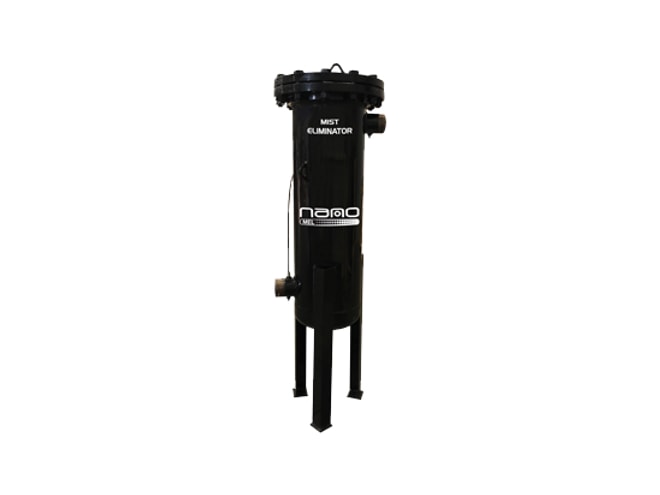

nano-purification solutions MEL Mist Eliminator

99.97% efficient microfiber coalescing media with particle removal down to 0.3 micron including coalesced liquid water and oil.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $6,283.80
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 250 to 3,000 SCFM capacity
  • Connections:
    • 2 to 3" NPT (250 to 1,000 SCFM)
    • 3 to 4" Flange (1,250 to 3,000 SCFM)
  • 35 to 248°F design operating temperature range
  • 20 to 150 PSIG operating temperature range
  • Less than 0.5 PSIG initial differential pressure
  • 1.0 PSID recommended pressure differential for element change
  • ISO Class 2.7.3 air quality class (solids, water, oil)

The nano-purification solutions MEL Mist Eliminator achieves the same efficiency filtration as conventional downstream filters with a service life of 10+ years. It is typically located after an oil lubricated compressor to provide optimum protection in the result of a catastrophic failure of the compressor's air/oil separator. The robust pressure vessel is built in accordance with the latest edition of VIII Div 1 ASME Code. The unit has an external powder epoxy coat as standard, and a zero air loss drain is shipped loose. It can be serviced without inlet & outlet disruption. Drain vent ports and a safety valve port are included as standard.

Applications

  • Industrial
  • Automotive
  • Food & beverage
