Overview

Features

  • Horsepower and Capacity:
    • Simplex: 0.88 to 8.6 HP, 7.7 to 200 ACFM
    • Duplex: 1.76 to 17.2 HP, 15.4 to 400 ACFM
  • 0.08 to 1.1 Torr max vacuum
  • Inlet isolation valve
  • Inlet flex connector
  • Horizontal vacuum receiver tank
    • 60, 80, 120, and 200 gallon
  • TEFC motor
  • 230/460/3/60 voltage

Description

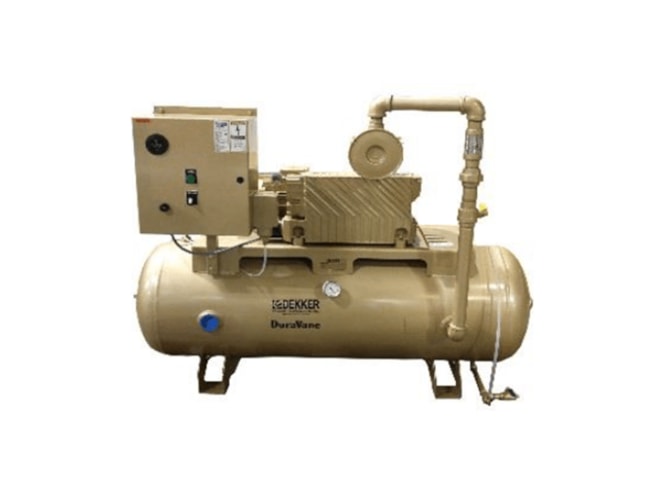

The Dekker DuraVane lubricated rotary vane vacuum system includes a lubricated rotary vane vacuum pump, gas ballast, mist eliminator, and control panel. The DuraVane features a three-phase TEFC electric motor, inlet isolation valve, inlet flex connector, inlet filter, receiver level sight gauge, vacuum gauge, and drain valve. The system is mounted on a horizontal vacuum receiver tank from 60 to 200 gallons, depending on the model selected.

The control panel monitors, measures, and displays performance. The control panel features include an across-line magnetic vacuum pump starter with three-phase overload protection, a PLC with an integral hour meter, vacuum on/off capability with adjustable set points, and a vacuum transducer for vacuum level indication and control.

Applications

  • Vacuum packing, lifting, and chucking
  • Paper converting
  • Biotech industry
  • Printing industry
  • Electronics industry
  • Laboratories
  • Hospitals
