  • 40 to 500 HP models
  • TEFC (IP 54) standard motors with Class F insulation
  • SKY Series airend:
    • Direct drive (1:1 ratio)
    • Slow speed rotors
    • Quadruple SKF bearings
    • 5 / 6 rotor profile
    • Direct flow inlet valve
  • Capacity:
    • Fixed speed: 139 to 1808 CFM at 175psi
    • Variable speed: 175 to 2098 CFM at 150psi
  • Single pass oil and aftercooler
  • Ultraweb air intake filter
  • Centrifugal cooling fans
  • Digital control panel

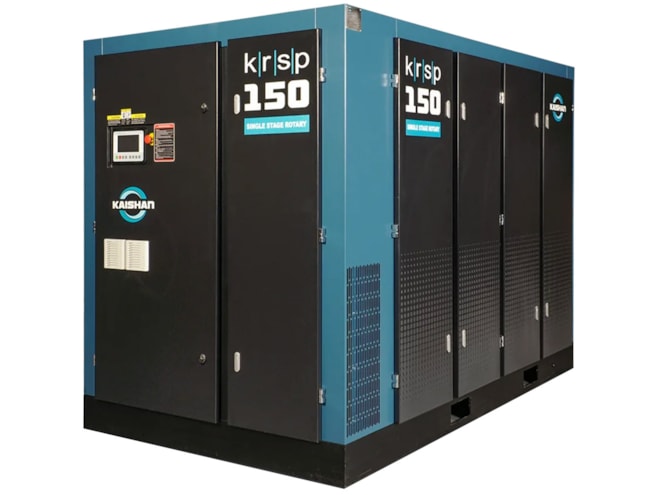

The Kaishan KRSP series rotary screw air compressor is a single stage compressor that features direct drive, providing a highly reliable flow of compressed air and offering maximum air output while also reducing energy usage. Available in both fixed speed or variable speed, air or water cooled configurations, the KRSP can meet your application needs.

The SKY Series airend with an asymmetric 5 / 6 rotor profile and KAPP Grinder rotor allows for tighter clearances and improved performance. The slow speed rotors maximize performance and increase reliability and the steady system pressure lowers system stress and overall air demand.

The optional variable speed drive (VSD) combines a robust power platform with a state-of-the-art control scheme. The VSD provides a soft start and the ability to operate efficiently through the capacity range by matching the flow to the demand, while also maintaining a high level of pressure control.

The KRSP series also features three-stage tangential oil separation to prevent direct oil impingement and lower dust contact. This combined with the Ultraweb air filter that removes particles (down to 5 microns) reduces the risk of contamination and reduces overall wear on the system.

In Stock

Manufacturer Stock

Part Number Price Available
Call for pricing 3 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Usually ships in 3 to 4 weeks". Click here to select options
