Overview

Features

  • 1.4 to 121 SCFM capacity
  • 40°F pressure dew point
  • 200psig max operating pressure
  • 150°F max inlet temperature

Description

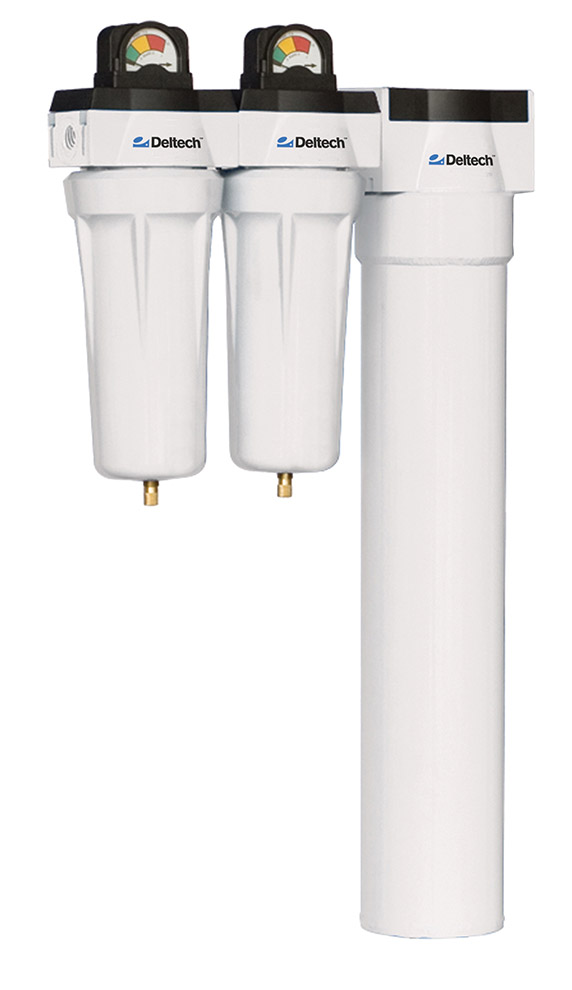

The Deltech DMD Series membrane air dryer is designed to use a stream of compressed air to trap and periodically vent water vapor from 1.4 to 121 SCFM flow capacity at point-of-use. Through the process of selective permeation, water vapor is removed while leaving the gas composition intact. Each membrane bundle is comprised of multiple tubular membrane fibers, evenly spaced to provide maximum surface area in a compact design. Each helically wrapped layer alternates direction to ensure consistent cross-sectional density and large flow paths for the sweep air that carries the water vapor to atmosphere. No oxygen is lost, which makes the DMD Series membrane air dryer ideal for medical applications.
