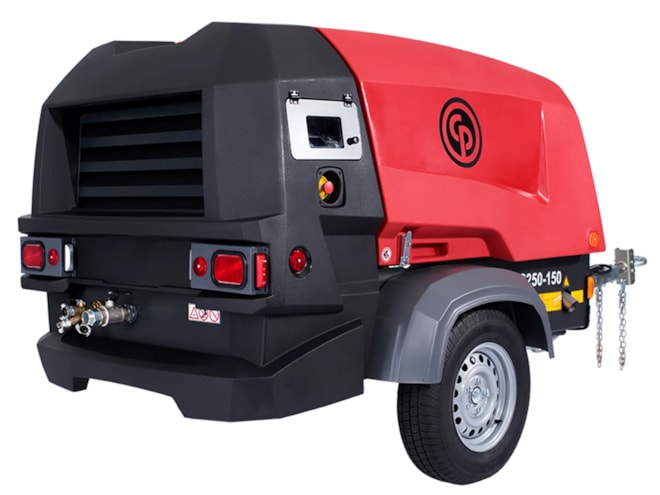

Chicago Pneumatic CPS 250 Portable Rotary Screw Air Compressor

Single-stage, oil-injected with Kubota diesel engine.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $45,382.40
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Michael Rotondo headshot

Michael Rotondo

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • Portable base mount
  • 65 HP
  • 100psi pressure rating
  • 238 CFM capacity
  • Optional aftercooler available
    • Air temperature at outlet valve without aftercooler: 177°F (80°C)
    • Maximum ambient temperature at sea level with aftercooler: 113°F (45°C)

The Chicago Pneumatic CPS 250 Portable Rotary Screw Air Compressor is powered by a liquid-cooled, four-cylinder turbocharged Kubota diesel engine. The unit hosts a C90 Screw element in its air end combined with a model V2403-CR-T-E4B Kubota diesel engine with a DPF in DOC exhaust treatment system, cooling circuit, air/oil separation and control systems, an undercarriage with fixed towbar, brakes and pintel eye available as standard.

The unit features PACE functionality coupled with an XC2003 controller, enabling multiple pressure and flow settings, matching air flow and pressure to the application's needs.
