Overview

Features

  • Motors available:
    • Kohler CH440 (14 HP)
    • Honda GX690 (13 HP)
    • Kohler CH680 (22.5 HP)
  • 23.2 CFM capacity at 175psi (tank mount)
  • 44 CFM capacity at 175psi (base mount)
  • Tank configurations:
    • Two 4 gallon tanks (low profile configuration)
    • 30 gallon
    • 60 gallon
    • 80 gallon
  • Base Mount option
  • Electric start
  • Loadless starting
  • Vibration isolators included
  • Enclosed belt guard

Description

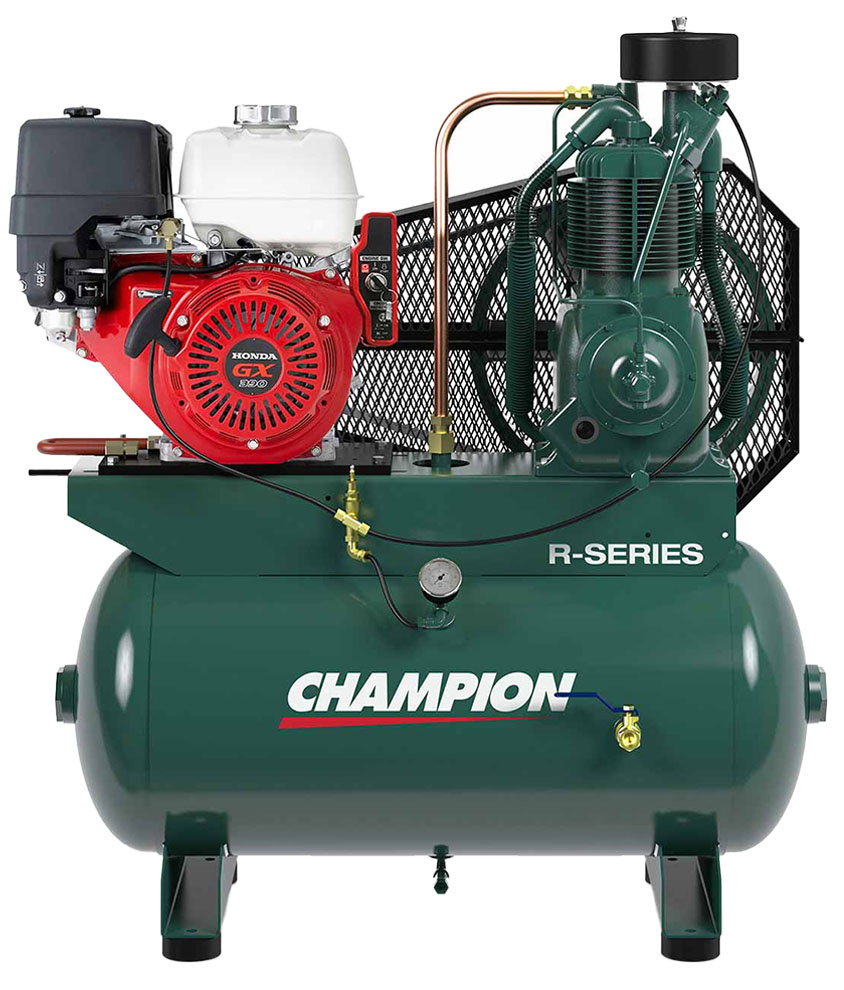

The Champion R-Series gas powered two stage piston air compressor is available as a tank mounted model (30, 60, 80, or low-profile 2x 4 gallon) or base mounted model. The multi-finned cylinders enable cooler operating temperatures while the integral cylinder/head design allows for a low maintenace and trouble-free design. The two high efficient lap joint compression rings with bi-directional seal provide efficient air delivery while the aluminum alloy first-stage piston and cast iron second-stage piston ensure proper balance of the system. The centrifugal unloader assures longer motor life by allowing the compressor to start unloaded every time.
