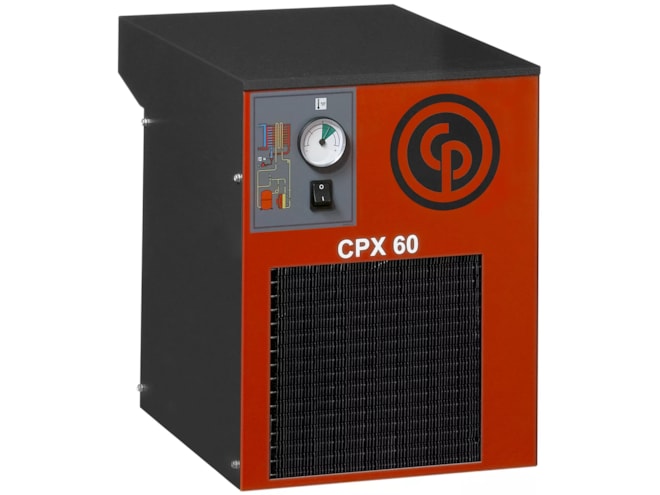

Chicago Pneumatic CPX Series Refrigerated Air Dryer

12.4 to 4238 CFM, 1 and 3 phase voltages, 203 or 232 PSI.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.
List Price: ${{ calcListPrice | formatCurrency }}
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • 12.4 to 4238 CFM capacity
  • 203 or 232 PSI maximum pressure
  • 115/1/60, 230/1/60, and 460/3/60 voltage options
  • 3/4" to 3" NPT or 4" to 6" ANSI flange connections
  • Refrigerant:
    • 12.4 to 64.4 CFM: R-134a
    • 83 to 4238 CFM: R-410A

The Chicago Pneumatic CPX Series Refrigerated Air Dryer cools compressed air to remove the largest part of water content produced by compression. The operation of the CPX dryer is monitored by an electronic controller indicating all relevant information, including the status of the refrigerant dryer, status of the fan, and the dew point indication. An alarm display shows high or low dew point, fan probe failure (CPX 40 to 270), and a service reminder. The full refrigerant dryer range is equipped with a level-controlled condensate drain, a range using electronic sensors to discharge only condensate and without wasting any compressed air. By applying environmentally friendly gas types, the product has no impact on the ozone layer.
