Powerex Medical Reciprocating Piston System

Name: Powerex Medical Reciprocating Piston System
Availability: BackOrder

Duplex system with premium NFPA control panel.

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open 8:00 am to 5:00 pm ET.

Request pricing below.

Configured Part Number: {{ calcPartNumber }}

Alternate Part Numbers: {{pn}}
{{pn}}

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

By Powerex
Made in the USA
FREE Shipping on orders of $1,000 or more
Factory Warranty and Support Available
Usually ships in 4 to 6 weeks

Matt Mazanec

Founder & Manager - 24 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

Oilless construction
Corrosion resistant air receiver
Redundant medical desiccant air dryers with purge control
Medical control panel
Dew point and CO monitors
Fully compliant with NFPA 99
Manufactured in ISO 9001:2015 certified facilities

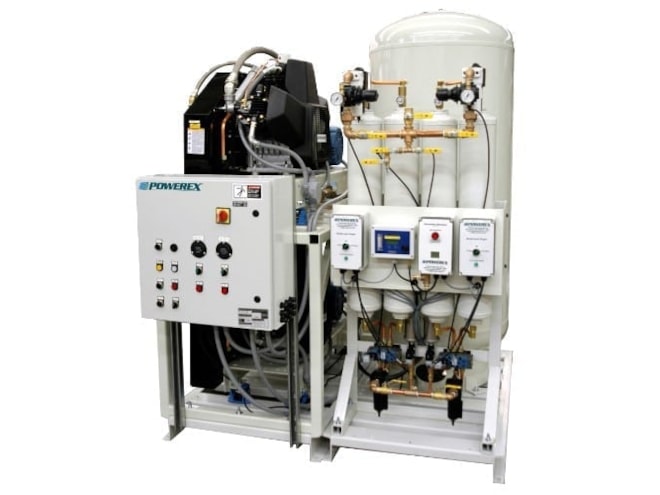

The Powerex Medical Reciprocating Piston System is designed to be the air compressor and air receiver component of a medical breathing air system for hospitals and medical institutes. When used in conjunction with properly sized dryers that meet dew point and flow specifications, along with an appropriate filter and monitor package, the system can comply with requirements in NFPA 99 for Category 1 applications.

The only field connections required are system intake, exhaust, and power connection at the control panel. All interconnecting piping, wiring, and vibration isolation pads are included with the system. Each compressor is belt-driven reciprocating, single-stage (1-3HP), two-stage (5-15HP), single acting, air-cooled oilless design with no oil needed for operation.
