Overview

Features

  • Tank mount
  • 30 to 240gal tank size
  • 3 to 10 HP
  • 8.8 to 31.2 CFM capacity
  • Pressure rating:
    • 116 PSI (standard)
    • 145 PSI (high pressure option)
  • Voltage options:
    • 208/230/3/60
    • 460/3/60
    • 208/230/1/60

Description

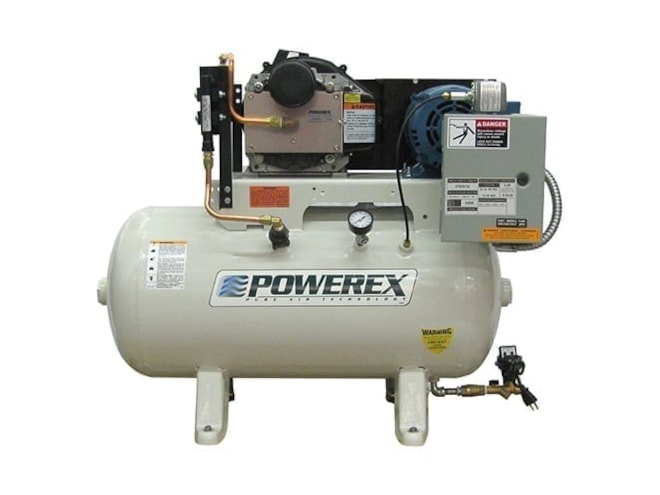

The Powerex Oilless Scroll Tank Mounted System is ideal for applications where clean, dry air is required. Mounting the scroll compressor on the tank itself maximizes available floor space and allows for easy access to the compressor for maintenance.

The system includes a single (simplex) oilless scroll air compressor with associated equipment and one ASME tank. The only field connections required are the system discharge, power connection at the control panel and dryer (if applicable), and condensate drain connection. The electric drain requires a standard 115V outlet. All interconnecting piping and wiring is included and operationally tested prior to shipment.

Applications

  • Food processing
  • Environmental
  • Gas generation
  • Pharmaceutical
  • Petrochemical
  • Laboratories
  • Instrumentation
  • Chemical processing
  • Manufacturing
