Overview

Features

  • 175psig maximum operating pressure
  • 35.6 CFM capacity
  • 120 gallon ASME tank (vertical or horizontal orientation available)
  • 208, 230, 460, or 575V options (all 3-phase)
  • E Series starter
  • NEMA 1 electrics
  • Outlet:
    • Vertical tank: 1in NPT
    • Horizontal tank: 3/4in NPT
  • Value, Value Plus, and Premium packages available

Description

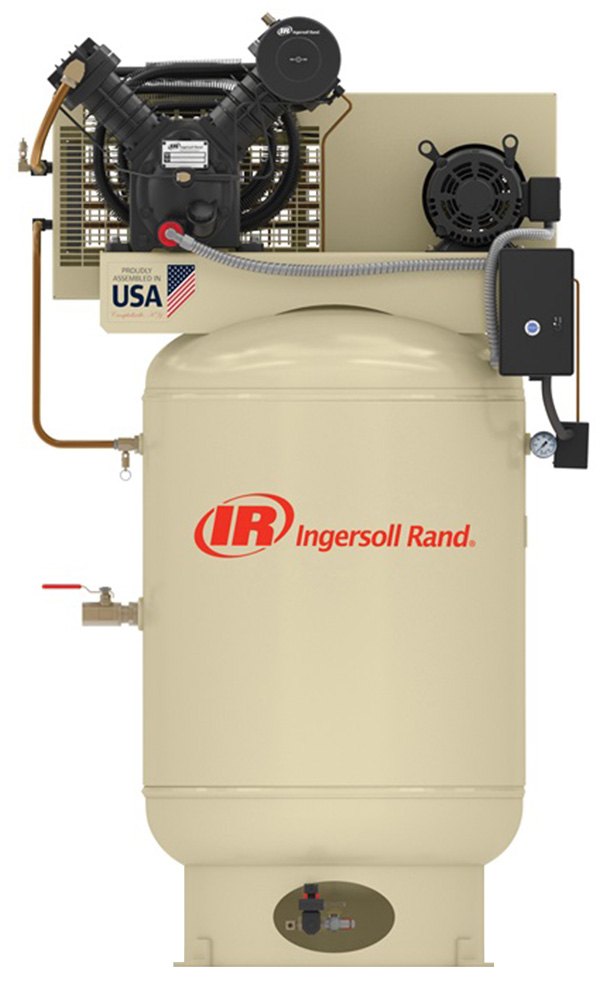

The Ingersoll Rand 2545 two-stage piston air compressor is designed for heavy shop or industrial use and applications including; automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops, and farms. The pump is made from durable cast iron construction for extended pump life and is designed for over 15,000 hours of use. The individually cast cylinders, overhung crankshaft, and one piece connecting rod makes maintenance simple with minimal downtime.

Packages:

  • Value Package: 100% cast iron pump, ASME-coded receiver tank, ODP motor, magnetic motor starter, automatic start/stop control with pressure switch, oil sight glass and manual drain.
  • Value Plus Package: Includes Value package features plus upgraded electric drain and air-cooled aftercooler.
  • Premium Package: Includes Value Plus package features along with low oil level switch and upgraded dual control with centrifugal unloader.

Optional Installation Kit Includes:

  • 1 Stainles braidied flex hose
  • 2 JIC x NPT hose adaptors
  • 1 set of vibration pads

Optional Start Up Kit Includes:

  • 4 quarts of T30 All Season Select oil
  • 1 set of replacement air filters
