Quincy Compressor QGSV Series Rotary Screw Air Compressor

5 to 60 HP, variable speed compressor, direct drive, 20 to 100% turndown capacity, and a NEMA premium TEFC motor.

Base Mounted Quincy Compressor QGSV Series Rotary Screw Air Compressor
Base Mounted Quincy Compressor QGSV Series Rotary Screw Air Compressor with Dryer
Tank Mounted Quincy Compressor QGSV Series Rotary Screw Air Compressor
Tank Mounted Quincy Compressor QGSV Series Rotary Screw Air Compressor with Dryer

Select your options below…

"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.

Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.

List Price: ${{ calcListPrice | formatCurrency }}

Starting Price: $7,847.59

Selected Options: + ${{ calcAdditionalCost | formatCurrency }}

Request pricing below.

${{ calcCost | formatCurrency }} per {{ calcQuantity }} (${{ unitPrice | formatCurrency }} each) per {{ boxQuantity }} (${{ unitPrice | formatCurrency }} each)

Configured Part No. {{ calcPartNumber }}

Alternate Part Nos. {{pn}}
{{pn}}

Available Payment Methods

Request Quick Quote

Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews

Highlights...

Features

5 to 60 HP
17 to 263.8 CFM capacity
20 to 100% turndown capacity
Pressure rating
- 125 PSI at 60 HP
- 145 PSI at 5 to 10 HP
- 150 PSI at 10 HP
- 175 PSI at 15 to 50 HP
230, 380, or 460V (three phase)
Danfoss variable speed controller
Airlogic Microprocessor Controller
NEMA premium TEFC motor

Tech Specs

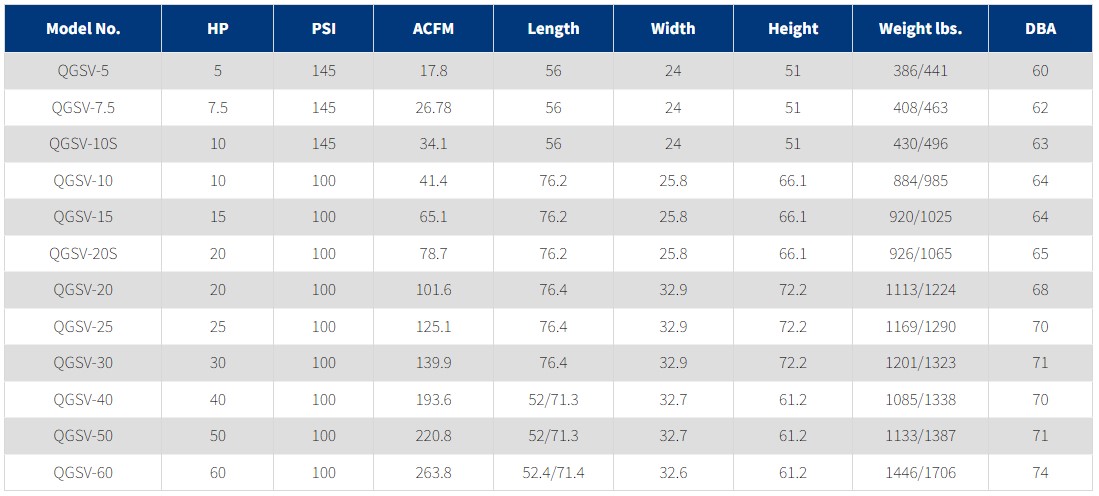

Quincy Compressor QGSV Series Rotary Screw Air Compressor Technical Specifications

The Quincy Compressor QGSV series rotary screw air compressors are variable speed and available in base mounted, tank mounted, or tank mounted with dryer configurations. Variable speed technology coupled with a direct drive transmission results in energy savings of up to 30%. The Airlogic microprocessor controller automatically maintains the desired system pressure and provides all the air that the sytem requires on a smooth, consistent basis. Remote control and connectivity allows for a flexible operating process and the standard quiet enclosure limits noise output to as low as 66 dBA. The QGSV series has options for a 120 gallon horizontal air receiver and an integrated 39°F dewpoint refrigerated air dryer.

The QGSV series rotary screw compressors are well-suited for applications in partial-load operating environments where maximum efficiency is essential or in highly sensitive applications in normal operating conditions. The QGSV series can function as a stand-alone machine or networked to function as a trim machine.
