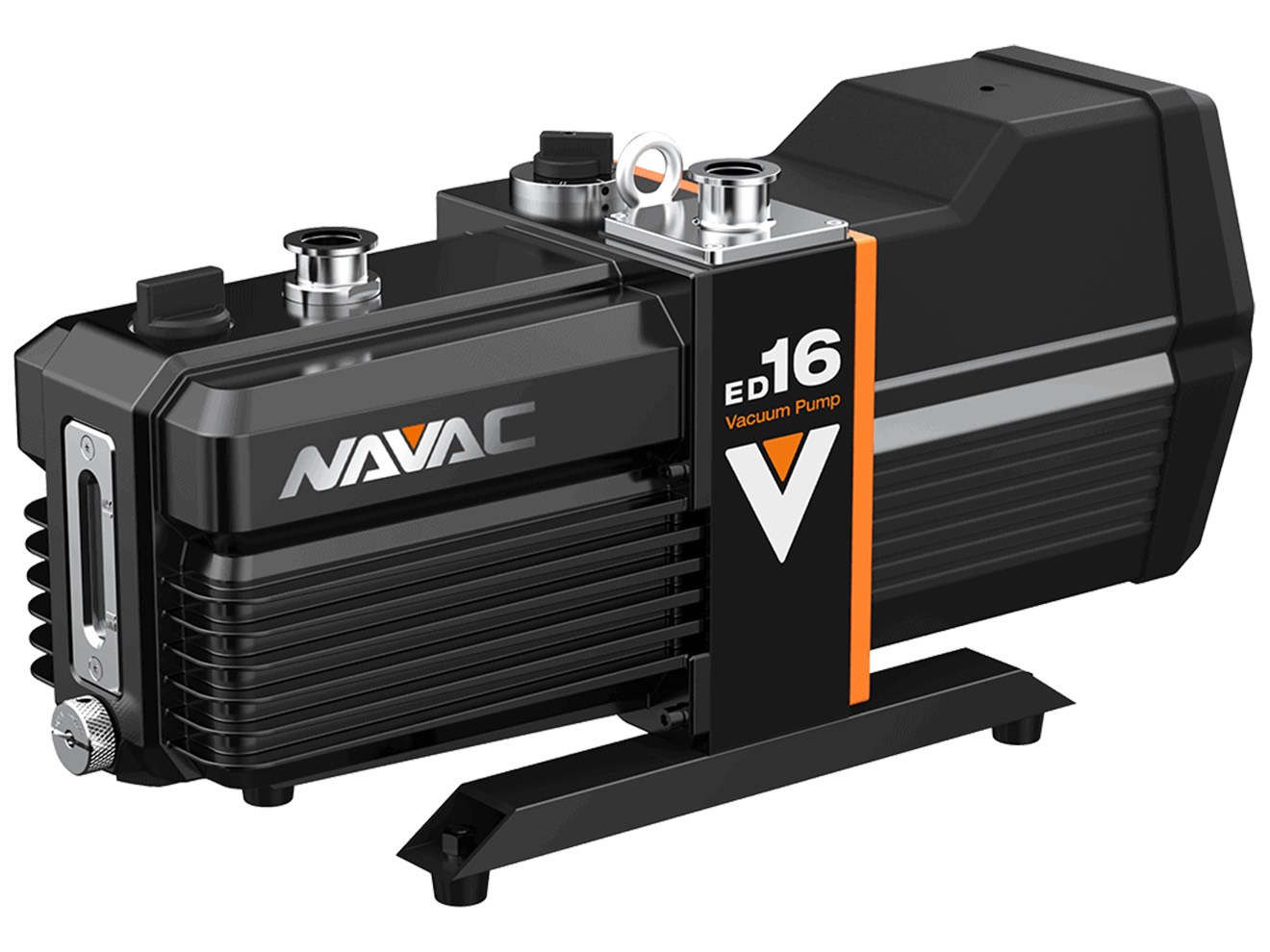

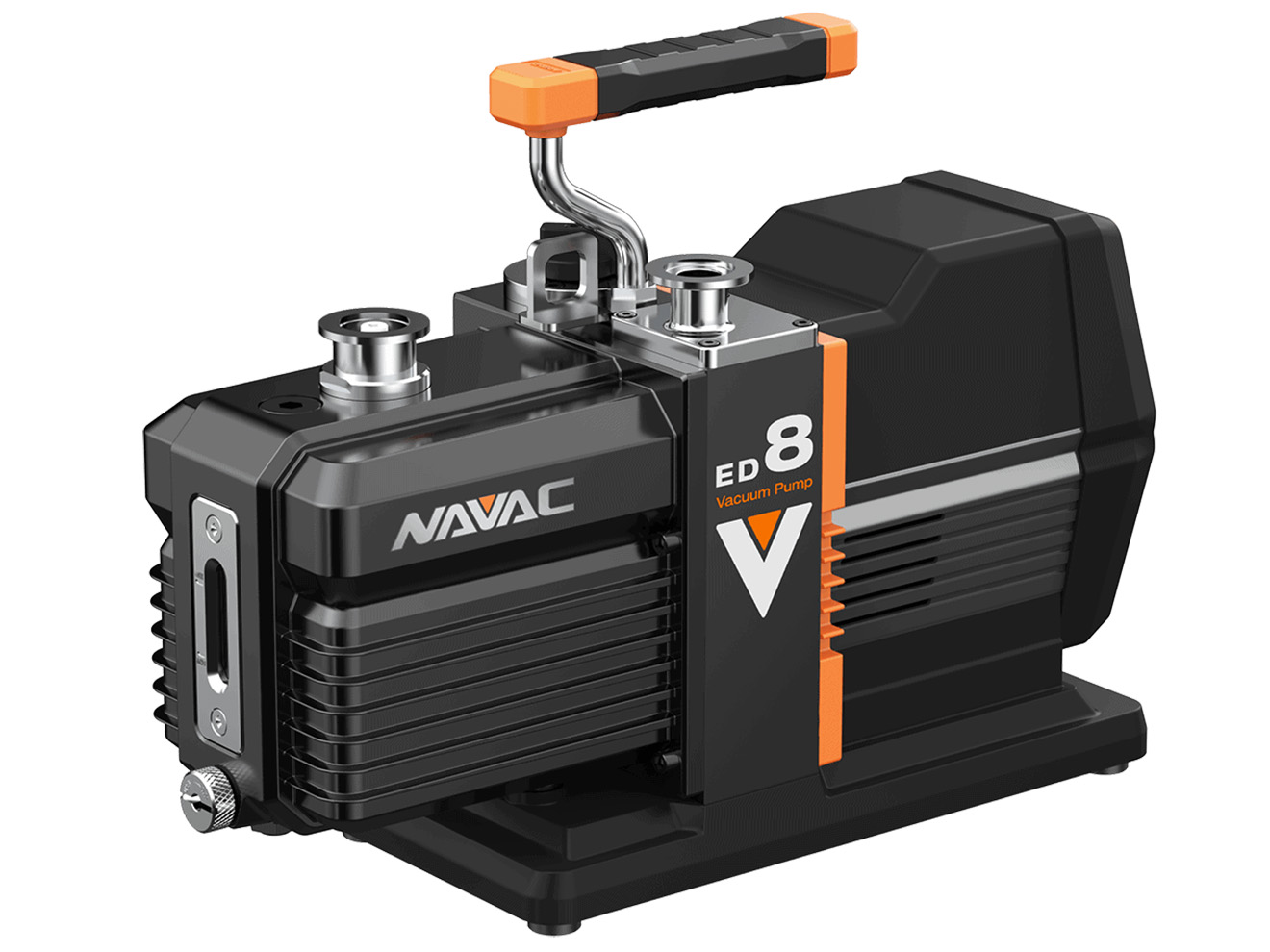

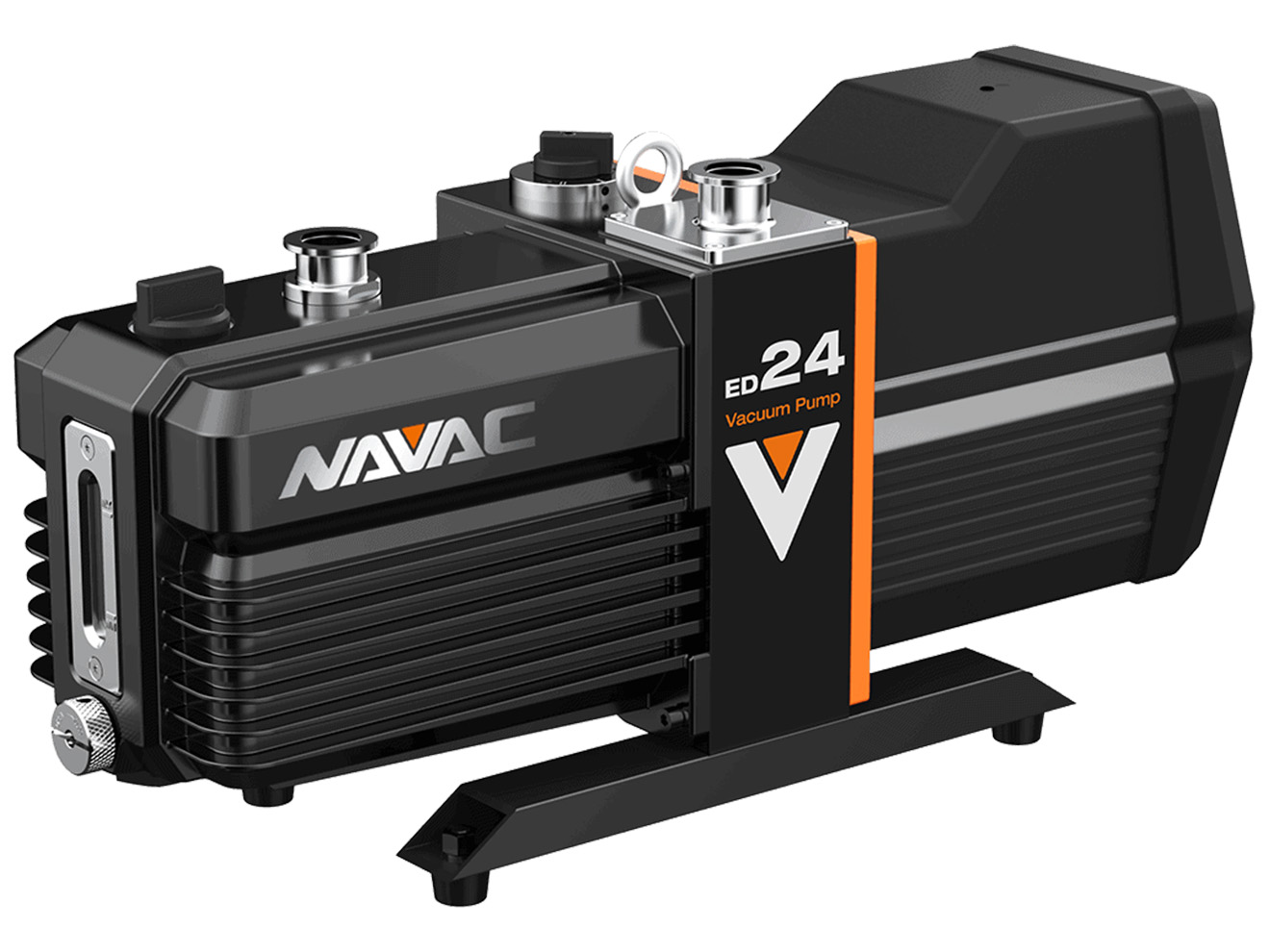

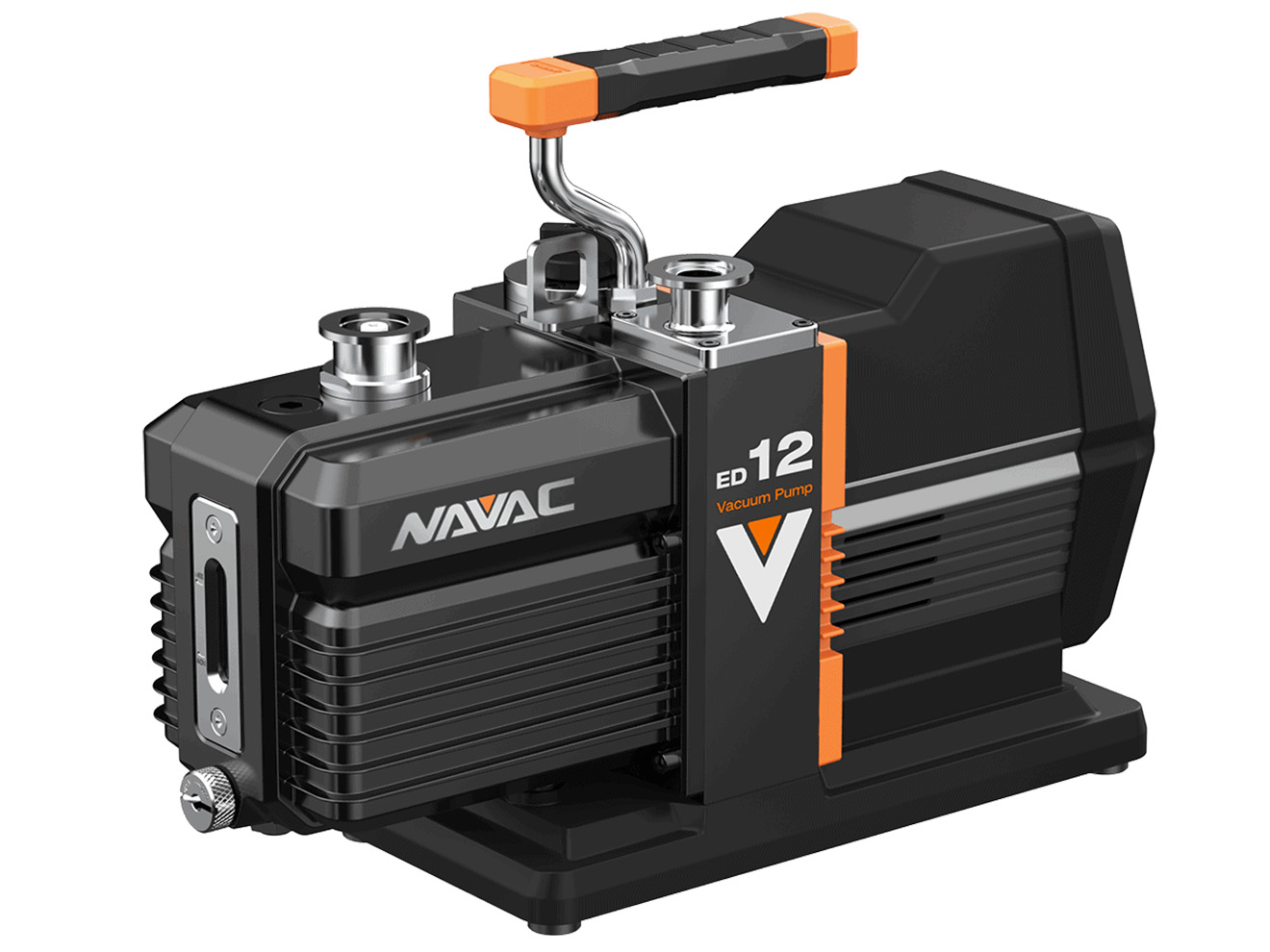

NAVAC EcoDrive Series Oil-Sealed Rotary Vane Vacuum Pump

Dual-stage vacuum pump with a permanent magnet motor, 2.4 to 18 CFM.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
${{ calcCost | formatCurrency }} ${{ (calcCost * calcQuantity) | formatCurrency }} per {{ calcQuantity }} (${{ (calcCost * boxQuantity) | formatCurrency }} per {{ boxQuantity }}) ${{ calcCost | formatCurrency }}
Configured Part No. {{ calcPartNumber }}
{{ calcAvailability }}
Alternate Part Nos. {{pn}}
{{pn}}
Available Payment Methods
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo
View Company Reviews
Highlights...

Features

  • Pumping Speed:
    • 2.4 to 18 CFM
  • Ultimate Total Pressure without Gas Ballast: 6x10-3 Torr
  • Ultimate Total Pressure with Gas Ballast: 1.5 Torr
  • cUL Approved
  • Two Shift Adjustable Gas Ballast Valve
  • Anti-suck back design
  • Forced oil circulation system
  • KF25 Flange inlet/outlet connections
  • 115/1/60 voltage

The NAVAC EcoDrive Series Oil-Sealed Rotary Vane Vacuum Pump is a dual-stage vacuum pump with a permanent magnet motor. The “Eco Mode” function means the pump runs at peak efficiency, optimizing energy consumption and noise. This technology is ideal for industrial applications due to its performance and reliability, ensuring long-term productivity.
