Overview

Features

  • Power rating: 10 to 40 HP (7.5 to 30kW)
  • Maximum pressure: up to 580 PSI
  • 1in to 1 1/4in NPT connections available
  • Dual volt (230/460V) with electrical board
  • Base mounted and air cooled
  • TEFC IP55 premium efficiency motor (IE3)
  • Belt pulley drive drive system
  • High strength cast iron sump
  • Loadless start and automatic discharge
  • Cast iron cylinder with cooling fins

Description

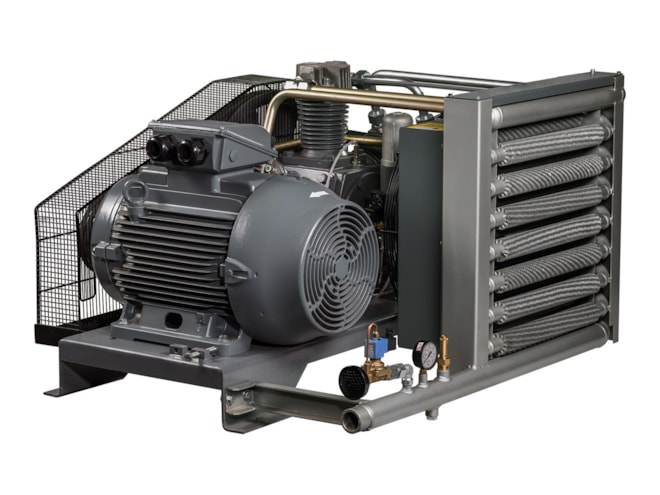

The Hertz HPC BOOSTER Series is a line of belt driven, high pressure piston compressors designed to withstand up to 580 PSI. This series of compressors features a belt pulley drive system, specially design fan type cast pulley, a star/delta motor starter, and a loadless start system with an automatic discharge system. The piston compressors feature various safety designs, such as an inlet air regulator and a high-pressure switch. There is a by-pass line for protection against high oil pressure.

The compressor block within these units features a cast iron cylinder with cooling fins and special aluminum alloy top heads. The pistons and cast connecting rods are made out of an aluminum alloy. The compressor line comes with a high strength cast iron sump and dynamically balance cast steel crankshaft and counterweight. The units are air-cooled and operate within a low speed, as well as utilizing an electric motor with overload protection.
