Overview

Features

  • 232 psig standard
  • 460V-3Ph-60Hz standard voltage
  • -40°F PDP or -100°F PDP available
  • 3 Filters standard (2 inlet & 1 outlet)
  • Pressure drop 2.9 psid or less
  • cULus listed
  • NEMA 4 enclosure

Description

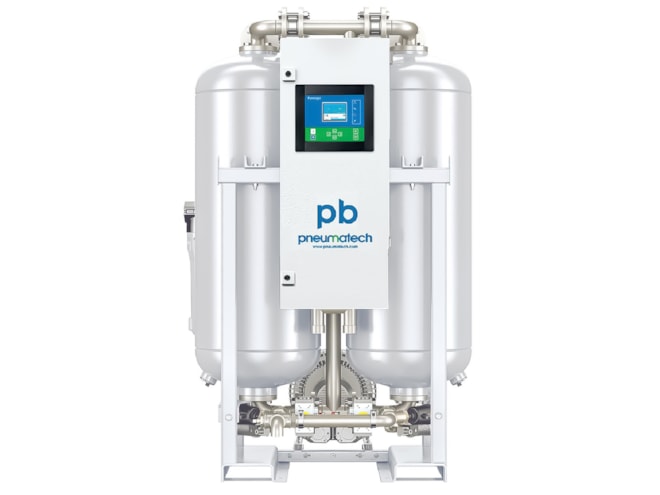

The Pneumatech PB 210-635 HE Blower and Zero Purge Adsorption Dryer uses heated blower purge air to remove moisture from the desiccant material and have therefore no purge loss during regeneration. The Zero Purge variants reduce life cycle costs even further by also eliminating purge loss during cooling. The cooling phase happens in a closed loop, hereby minimizing the performance impact at high ambient temperature and relative humidity.

Zero Purge variants are equipped with a purge back-up mode which switches the dryer to purge cooling mode in case PDP could not be met at ambient conditions outside of limitations.
