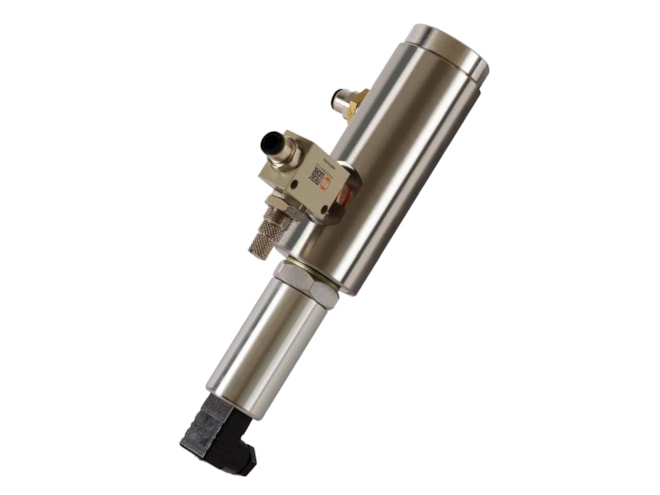

Michell Instruments Easidew Sampler

Sampling system designed for line pressure dew point measurement in compressed air and industrial gas applications.

Don Mazanec headshot

Don Mazanec

Senior Applications Specialist - 4 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • Integral particulate filter (99.5% removal of 0.3μm)
  • 1 to 5l/min (2.12 to 10.59scfh) gas flow rate
  • 1 MPa operating pressure
  • -40 to 140°F operating temperature range
  • 5/8" UNF process connection
  • No inlet metering valve
  • Outlet metering valve included
  • 1/4in Swagelok tube fittings
  • Materials:
    • Block and Cap: 316 stainless steel
    • Flow Control Block: Aluminium
    • Couplings: Nickel-plated brass
  • IP66 (NEMA 4)

The Michell Instruments Easidew Sampler is designed for quick and accurate measurements of line pressure dew points in various compressed air and industrial gas applications. A flow control valve is outfitted by the factory to the outlet port which allows for the setting of the optimum gas flow between 1 and 5 litres per minute.
