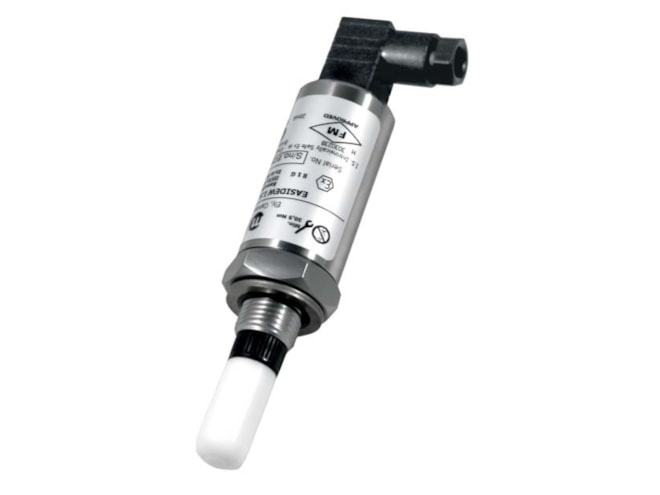

Michell Instruments Easidew EA2 Dew Point Transmitter

±2°C dew point measurement, -100 to +20°C dp range, 5/8" UNF process connection.

Matt Mazanec headshot

Matt Mazanec

Founder & Manager - 24 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • -100 to +20°C dp range
  • ±2°Cdp accuracy
  • 2-wire 4 to 20 mA output
  • 316 stainless steel sensor and sample blocks
  • 2-wire loop power connection
  • 5/8" UNF process connection
  • Standard HDPE guard (protection against fine particulate <10µm)

What's in the Box

  • Traceable calibration certificate

The Michell Instruments Easidew EA2 Dew Point Transmitter offers measurement from -100 to +20°C dp and a two-wire 4 to 20mA analog output. Featuring a 316 stainless steel sensor and sample block, the EA2 has a standard 5/8 inch UNF process connection. The Easidew EA2 transmitter maintains an accuracy of ±2°Cdp and the output can be configured for dew point or ppmv moisture content. The included HDPE guard protects against fine particulates <10µm.
