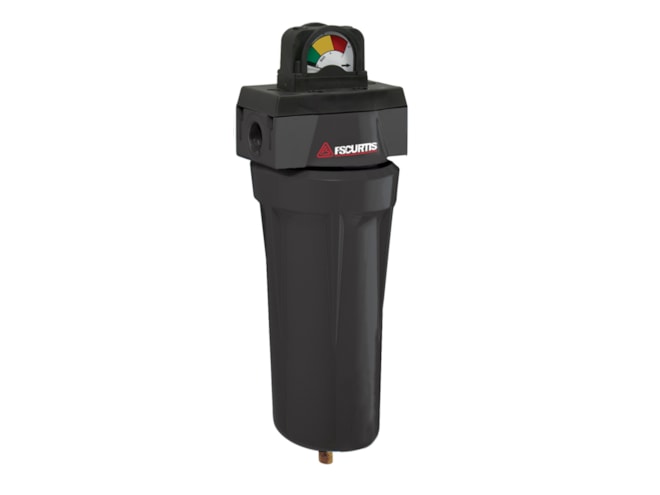

FS-Curtis CF Series Compressed Air Filter

Compressed air filtration series with seven element grades available and a maximum inlet flow of 21250 scfm.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $215.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Matt Mazanec headshot

Matt Mazanec

Founder & Manager - 24 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • Withstands temperatures to 150°F
  • Seven element grades available
  • Low resistance to flow
  • Silicone free and chemically resistant
  • Coated, closed-cell foam sleeve
  • Large open area minimizes pressure drop
  • Matrix blended fiber
  • Corrosion resistant cores
  • Maximum inlet flow of 21250 scfm, depending on element grade selection

The FS-Curtis CF Series is a line of compressed air filters with seven grade options available: oil vapor removal (grade 1), ultra high-efficiency oil removal (grade 3), high-efficiency oil removal (grade 5), dry particulate air line (grade 6), general purpose air line (grade 7), separator/filter (grade 9), and moisture separator (grade 11). The filters are designed with a matrix blended fiber to improve capture rate. The push-on element features aids in element replacement and the low resistance to flow provides extra strength.

Additionally, this filtration series features a piston type element to housing seal to keep unfiltered air from by-passing the element. The chemically resistant end caps are bound to the media with a formulated adhesive. The coated, closed-cell foam sleeves resists chemical attacks from oils and acids. The CF series ensures efficiencies by preventing the re-entrainment of coalesced liquids. The filters are silicone free and are suitable for application involving plant air, instrument air, and medical air environments.
