Overview

Features

  • Maximum flow: 3200 scfm
  • Maximum working pressure: 150 psig
  • Certified to UL 1995/CSA 22.2 No. 236-05
  • Standard Voltage: 460/3/60
  • Connection options:
    • 1 1/2 to 2in NPT
    • 3 to 4in ANSI flange
  • NEMA 4 rated electrical enclosure
  • Heater vessel and hot piping insulation included

Description

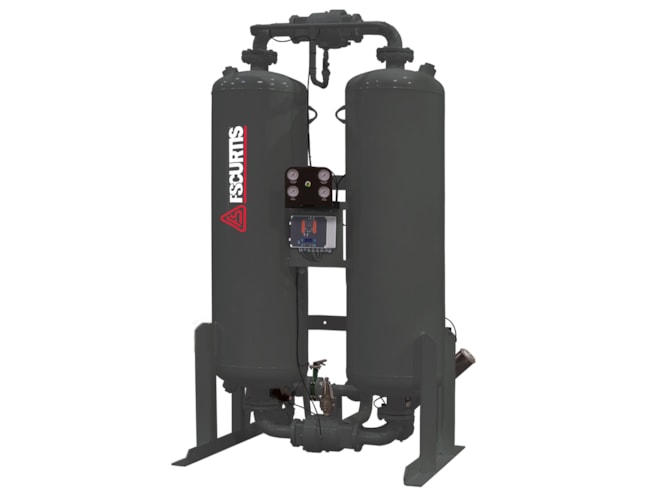

The FS-Curtis DHP Series of heated purge desiccant dryers are externally heated and offer consistent dew point performance, equipped with an advanced purge booster. They consumer less died compressed air volume for regeneration purpose due to the use of a low-watt density heated. These dryers are ideal for situations in which air loss needs to be reduced and aligned with supply side equipment with demand-side requirements.

The dryers contain a NEMA 4 rated electrical enclosure. The low-watt density heater not only saves energy, but also aids in desiccant aging. The Premium grade desiccant beads enhance the surface area of the dryer and have high crush strength. These dryers have an inlet flow rating between 300 and 3200 scfm.
