Overview

Features

  • 50 to 250 CFM
  • Spin on cartridge design (50 and 100 CFM models)
  • Install kits available

Description

The Champion CHWS Series Oil and Water Separator consists of three models that cover 50, 100, and 250 CFM. All three models are simple to install, require minimal space, and provide <10 ppm condensate carryover.

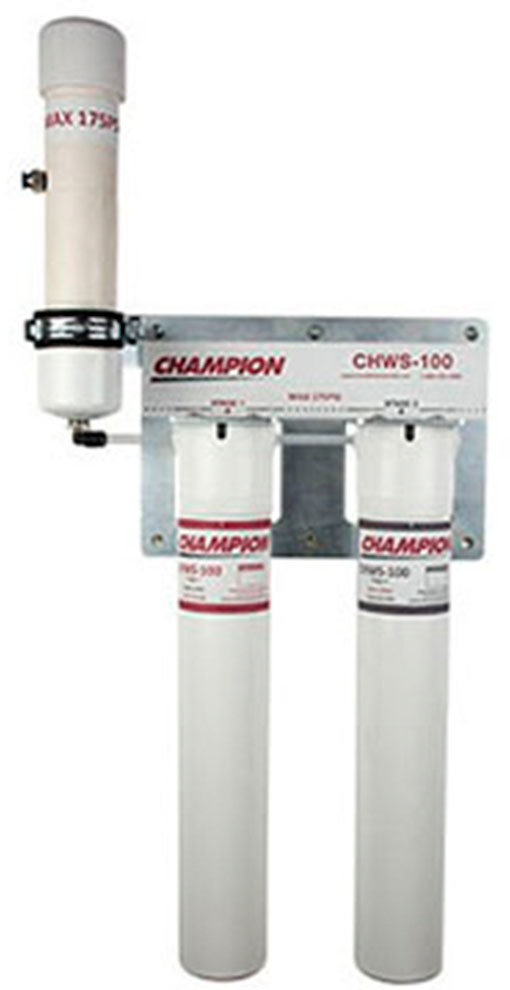

The two smaller CHWS units feature spin-on / spin-off cartridges allowing easy and clean maintenance. The cartridges are filled with an enhanced alumina silicate substrate media bed that prolongs the unit's life. When the unit requires maintenance, spin on a new cartridge.

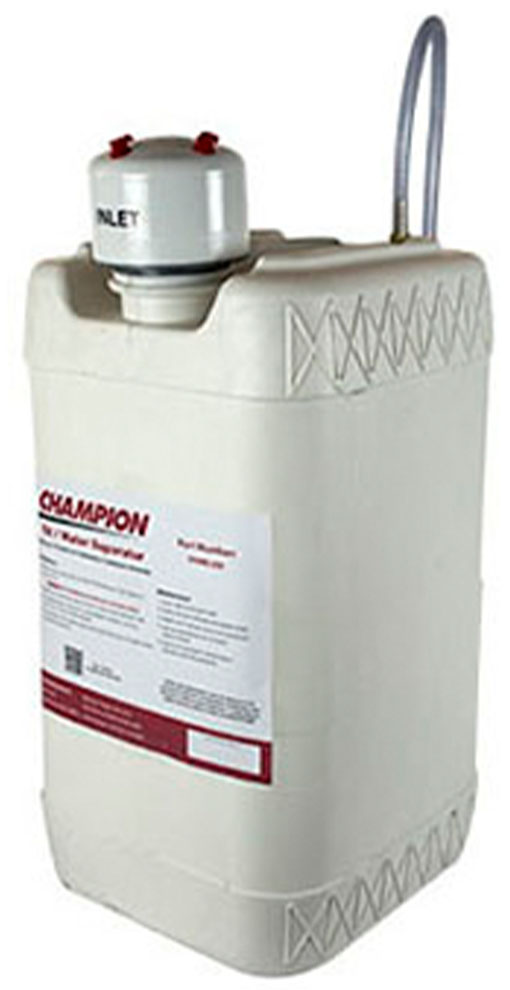

The CHWS-250 uses a different strategy to accomplish the same goal of removing lubricant particles from condensate. Instead of replaceable cartridges, the CHWS-250 features a "use up and replace" design. When the molecular sieve utilized in the active filtration process is spent, replace it with a new unit.

Optional install kits include 14mm tubing, mounting brackets, 14mm x 1/4" tube adapters, straight union connectors, 1/4" MNPT x 1/4" poly adapters, and 25' of 1/4" poly tubing.
