Overview

Features

  • 7 to 1200 CFM
  • NEMA 1 Standard
  • Maximum Inlet Air Temperature:
    • 7 to 150 CFM: 140°F (60°C)
    • 200 to 1200 CFM: 120°F (49°C)
  • Maximum Operating Pressure:
    • 7 to 150 CFM: 203 PSIG
    • 200 to 1200 CFM: 300 PSIG
  • Compressed air at dryer inlet:
    • 100 PSIG and 100°F (38°C)
    • Ambient air temperature: 100°F (38°C)
  • Pressure drop: +/- 0.5 PSIG (200 to 1200 CFM models)

Description

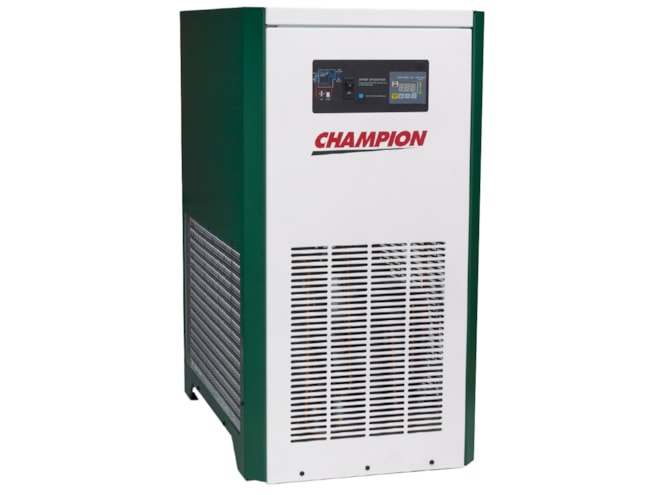

The Champion XCNC Series Non Cycling Refrigerated Air Dryer offers multiple design features to ensure a constant dew point at all load levels, and to deliver continuous dry-air performance that satisfies ISO 7183 and CAGI ADF100 industry standards. The XCNC features full-function control with enhanced control parameters, diagnostics, and alarms, which is more sophisticated and powerful than similarly sized competitive products. Every unit is tested to ensure leak-free operation and compliance with operating specifications.
