Atlas Copco 15 HP Oilless Scroll Air Compressor with Air Dryer 31.8 CFM @ 141 PSI, SF11+-145 AFF LC Multi 230v | 8153602779

Model:
SF11+-145 AFF LC Multi 230v
Vendor Item Number:
8153602779
+ -
$29,478.00
Call Any of our Sales Experts to Place an Order. We offer Expert Advice, Quick Quotes and Product Availability.
Our Team Consists of "Air Compressor Experts", Challenge Us!
Mon-Fri 8 am to 5:00 pm EST
Coming Soon; Hours to 8:00 pm EST

Call Toll Free: 866.778.6572 within the Lower 48 States

Outside the US: 508.230.7118

"Over 100 Years of Experience"
Ships Factory Direct

  • DESCRIPTION
  • TECH DATA
  • PRODUCT REVIEWS
  • Product Attachments
  • Product Q & A

DESCRIPTION

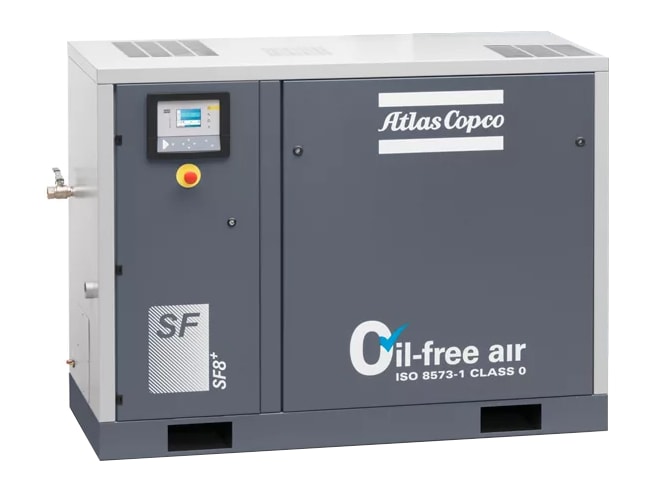

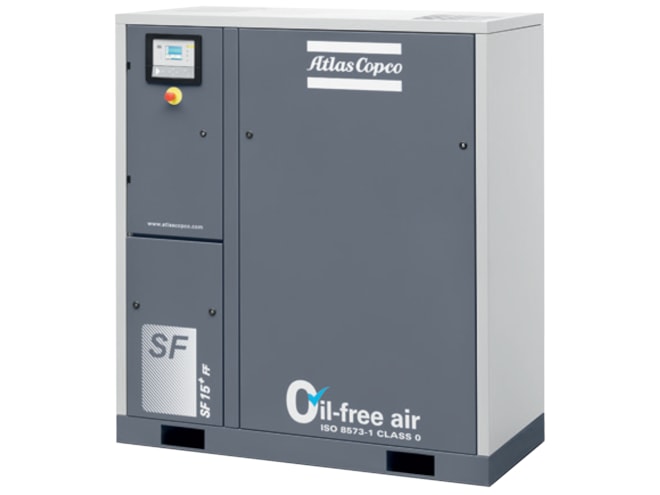

Atlas Copco 15 HP Oilless Scroll Air Compressor with Air Dryer 31.8 CFM @ 141 PSI, SF11+-145 AFF LC Multi 230v | 8153602779

The SF 8+ Multicore scroll compressors bring in the benefits and flexibility of a modular system utilizing two to four compressor modules integrated into one canopy. These units are outfitted with Atlas Copco Elektronikon smart controller, which continuously monitors the status of each element and starts and stops the compression element, ensuring that the compressed air output matches the demand. There are 2 pressure variants depending on the application need, with 116 psig and 145 psig options. SF8+ scroll is equipped with an IP55 Class F, a totally enclosed & air cooled motor that complies with IE3 Premium efficiency standards.

As oil-free compressed air is a prerequisite for many manufacturing processes, we ensure consistent oil-free air by preventing oil from entering your compressed air system. Atlas Copco scroll compressors are reliable and compact while providing supreme energy efficiency without compromising on quality.

Pure oil-free air is achieved with Atlas Copco scrolls through no metal-to-metal contact between the compression scrolls, guaranteeing high quality, oil-free air.

The low speed of the scroll compression elements ensures extremely quiet operations at 63 dB(a), making the SF a perfect choice for sensitive working conditions.

Atlas Copco SF Scrolls provide simplicity and reliability with a proven piece of mind with over sixty years of leading the industry in oil-free compressed air technology.

<img style="display: block; margin-left: auto; margin-right: auto;" src="https://dtn3oz3jpl9or.cloudfront.net/media/wysiwyg/atlas_copco_scroll_6.png"

TECH DATA

  • Product Specification

    • Capacity (CFM) @ 145 PSI
      31.8 CFM
    • Compressor Style
      Oilless Scroll
    • Cooling Type
      Air Cooled
    • Dew Point
      + 39 Degree F
    • Horsepower (HP)
      15 HP
    • Max Pressure (PSI)
      141 PSI
    • Pump Type
      Multi-Scroll
  • Overview & Technical Details

    • Air Dryer Style
      Refrigerated
  • Additional Features

    • After Cooler
      Included
    • Air Dryer Included
      Included
    • Magnetic Starter
      Included
  • Connection

    • Connection NPT
      1"
  • Dimensions & Weight

    • Dimensions (L)(W)(H)
      65" x 30" x 49"
    • Weight (lbs)
      999.000000
  • Motor Data

    • Motor Type
      TEFC
  • Power Requirements

    • Standard Voltages
      208-230/460/3/60
  • Warranty

    • Standard Warranty
      1 Year Bumper-to-Bumper Warranty
