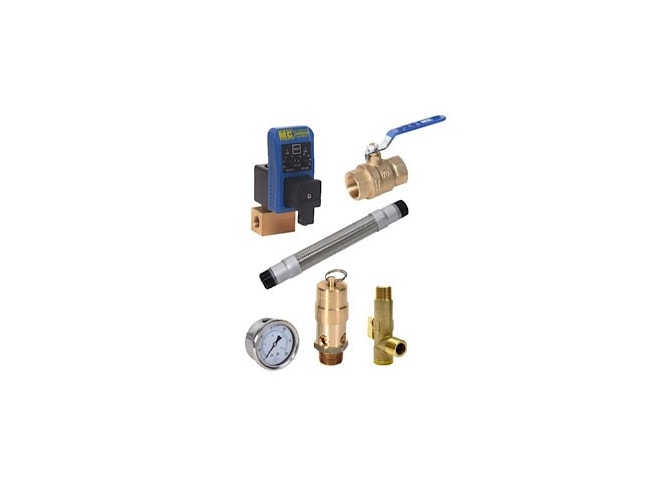

Midwest-Control Tank Kit - Safety Valve, Gauge, Ball Valve, Receiver Timer Drain/Strainer, Flex Hose

1" Safety Valve, 165 PSI, 1358 SCFM and 2.5" LF CBM Gauge 300 PSI, Ball Valve, Drain/Strainer, and Flex Hose.

$349.35
Request Quick Quote

View Company Reviews
Highlights...
Henry Santos headshot

Henry Santos

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 1" Safety Valve
  • 165 PSI
  • 1358 SCFM
  • 2.5" LF CBM Gauge 300 PSI
  • Ball Valve
  • Receiver Timer Drain
  • Strainer
  • Flex Hose

Custom built tank kits for your specific application. This kit contains a safety valve, gauge, ball valve, receiver timer drain, strainer, and flex hose.

Safety Valve:

  • Set Pressure Tolerances: ± 3% of Set Pressure
  • Maximum Temperature: 250 F
  • Construction: All Brass With Stainless Steel Springs
  • Unique Silicone O Ring Seal Ensures Valve is Bubble Tight to Within 10% of Set Pressure
  • Stamped With the UV and NB Symbols

Liquid Filled Gauge

  • Built-In Snubber Dampens the Effect of Pulsation and Vibration
  • Stainless Steel Case and Bezel
  • Copper Alloy Wetted Parts
  • Polycarbonate Lens
  • Liquid Filled
  • Accuracy : 2-1-2% of Span ASME B40.1 Grade A
  • Dual Scale: PSI/Bar (x 100=kPa) Standard

Ball Valve

  • UL, CSA/CUS and FM Approved
  • 600 PSI CWP 150 WSP Service
  • Suitable for Vacuum Service to 29.9" Hg
  • Full Port
  • Temperature Range: -20 F to 365 F
  • Forged Brass Body
  • Blow Out Proof Brass Stem
  • Chrome-Plated Brass Ball
  • PTFE Ball Seat and Packing Nut
  • Steel Handle w/Vinyl Grip

Electronic Condensate Drain

  • UL and CE Approved
  • Construction: Forge Brass Body, 4.5mm Orifice
  • Solid State Timer
  • Adjustable Interval Time: 0.5 to 45 Minutes
  • Adjustable Discharge Time: 0.5 to 10 Seconds
  • Manual Test Switch
  • Operating Temperature: 34 F to 140 F
  • IP 65 NEMA 4 Rated
  • Yellow LED On - Off Lights
  • Housing: ABS Fire Resistant
  • Includes 6 Ft Power Cord
  • Inlet and Outlet Connection: FNPT

Strainer

  • 600 PSI CWP Service
  • Temperature Range: -4 F to 200 F
  • Brass Body
  • 50 Mesh 304 Stainless Steel Screen
  • Chrome Plated Ball
  • PTFE Ball Seats
  • Unique Design Allows Valve to Be Closed and Screen to Be Cleaned Without Loss of Air Pressure In Tank or Drain
  • Dual Threaded with 1/4” Internal FPT Threads
  • Zinc Die Cast Handle

Flex Hose

  • High Performance Annular Corrugated Stainless Steel Flexible Metal Hose
  • Aids as a Vibration Isolator and Helps Correct Misalignment
  • 304SS Corrugated Inner Core, Braid and External Ring
  • Carbon Steel MPT Fittings with Corrosion Resistant Coating
  • Maximum Working Temperature 800 F
  • Maximum working Pressure is 629 psi @70 F (1/2" Hose)
