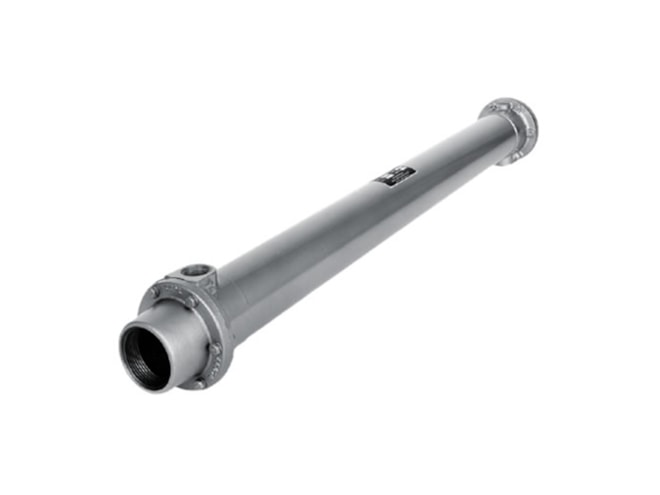

Southwest Thermal AB Series Water Cooled Aftercooler

Shell and tube aftercooler with all brass hubs and shell assemblies.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Request pricing below.
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Matt Mazanec headshot

Matt Mazanec

Founder & Manager - 24 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 40 to 2800 SCFM capacity
  • 250 PSI max operating pressure
  • 350°F max operating temperature
  • Materials:
    • Tubes: Copper
    • Shell: Brass
    • End hubs: Brass
    • End bonnets: Cast iron
    • Baffles: Brass
    • Gaskets: Nitrile rubber
    • Nameplate: Aluminum foil

The Southwest Thermal AB Series water cooled aftercooler has a compact shell and tube design for heat transfer efficiency. The AB Series can be easily dismantled for cleaning or repairs. All brass hubs and shell assemblies reduce galvanic and other types of corrosion. The capacity of the AB Series can be increased by adding plates in pairs.

Applications

  • Rotary screw air compressors
  • Piston compressors
  • Centrifugal air compressors
  • Vacuum systems
  • Blower lube oil coolers
