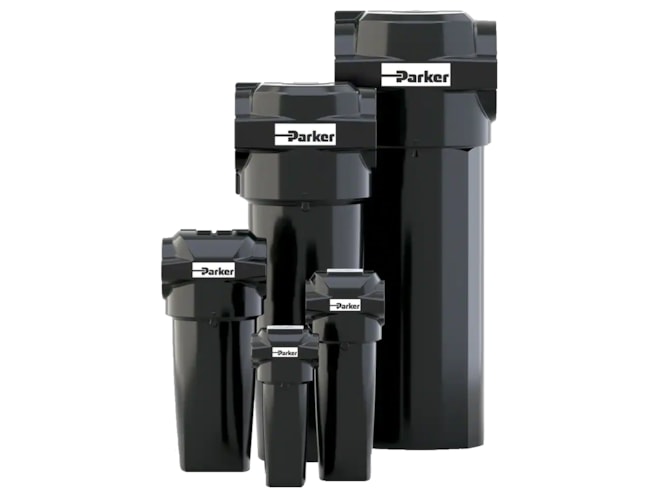

Parker OIL-X WS Water Separator

Delivers filtration efficiency >93% based on ISO 8573.9.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
List Price: ${{ calcListPrice | formatCurrency }}
Starting Price: $199.40
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Matt Murphy headshot

Matt Murphy

Senior Applications Specialist - 16 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 21 to 1,695 CFM capacity
  • 1/4 to 3" NPT connection
  • 232 PSIG pressure rating
  • 35 to 176°F operating temperature
  • Die cast aluminum construction
  • Automatic float drain

The Parker OIL-X WS Water Separator has been designed for use with compressor inter coolers / after coolers, integration with refrigeration dryer heat exchangers, or protection of a coalescing filter from heavy liquid contamination. Traditional centrifugal water separators are designed for maximum separation efficiency at maximum flow rate, with separation efficiency falling off as flow rates vary, especially with variable speed compressors. As separators rarely operate at 100% of rated flow all the time, the Parker OIL-X WS water separator is designed with variable speed compressors in mind and provides >93% liquid separation from compressed air between 25% and 100% of their rated flow. The water separator module design includes optimized vanes to spin the compressed air, a high efficiency impinger for maximum separation efficiency, vortex concentrator and 90-degree elbow with turning vanes to promote a consistent, optimum air flow with minimal pressure loss. The OIL-X WS is fully tested in accordance with ISO12500-4 and ISO8573-9 for liquid water, and performance is independently validated by Lloyds Register. Parker OIL-X materials of construction are FDA Title 21 CFR compliant and EX1935/2004 exempt.
