FS-Curtis RN Series Refrigerated Non-Cycling Dryer

Premium or high inlet refrigerated, non-cycling dryers with a maximum inlet flow of 1200 scfm.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $1,104.00
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }} per {{ calcQuantity }} per {{ boxQuantity }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Michael Rotondo headshot

Michael Rotondo

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • Premium or high inlet options available
  • Maximum inlet flow: 1200 scfm
  • Maximum inlet temperature: 120°F for premium; 180°F for high inlet options
  • Maximum operating pressure: 225 psig
  • Certifications
    • UL 1995/CSA 22.2 No. 236-95 for premium dryers
    • UL 1995/CSA 22.2 No. 236-05 for high inlet dryers
  • High inlet dryers perform moisture removal to 50°F pressure dew point

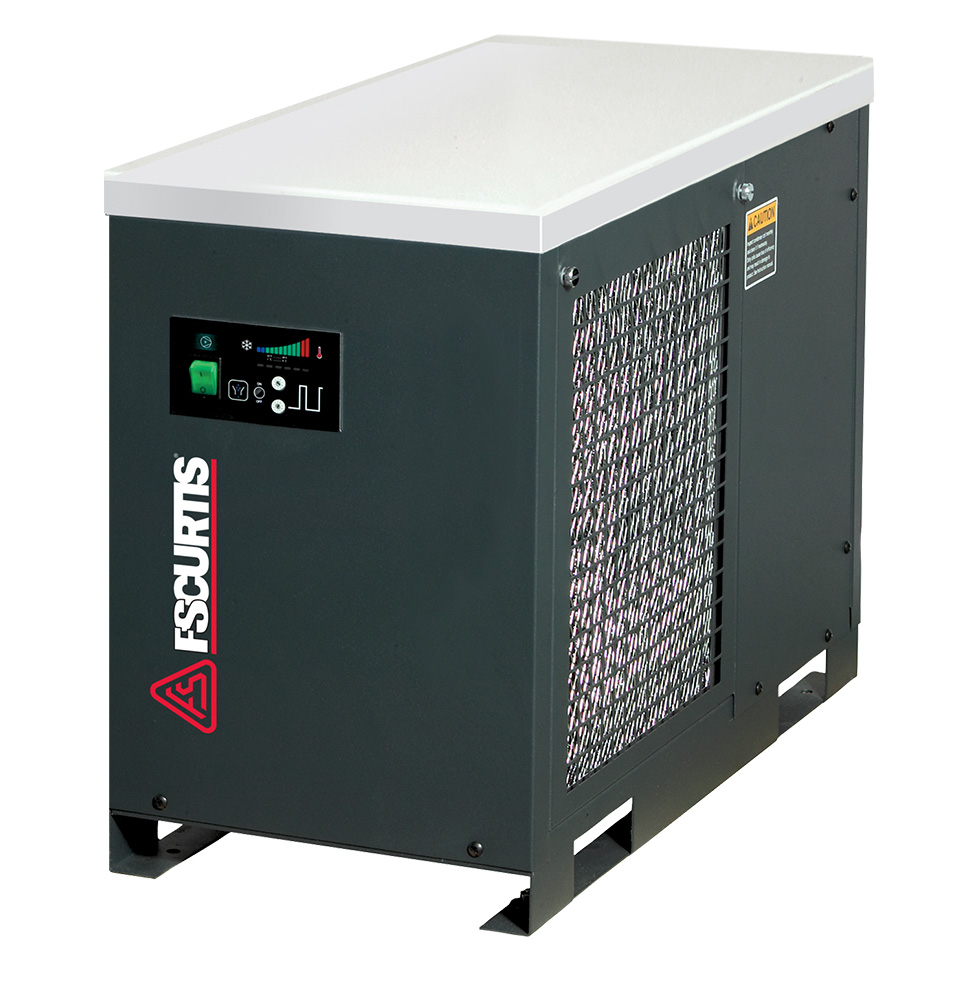

The FS-Curtis RN Series of refrigerated non-cycling air dryers are available in two selections: premium and high inlet temperature. The premium dryers offer a delivery of clean, dry, consistent quality air by meeting ISO 8573.1 Air Quality Class 4 to Class 5 pressure dew point standards. They feature an at-a-glance control panel dew point to help verify performance. The 10 and 15 scfm models use a float drain whereas the remainder use an electronic drain.

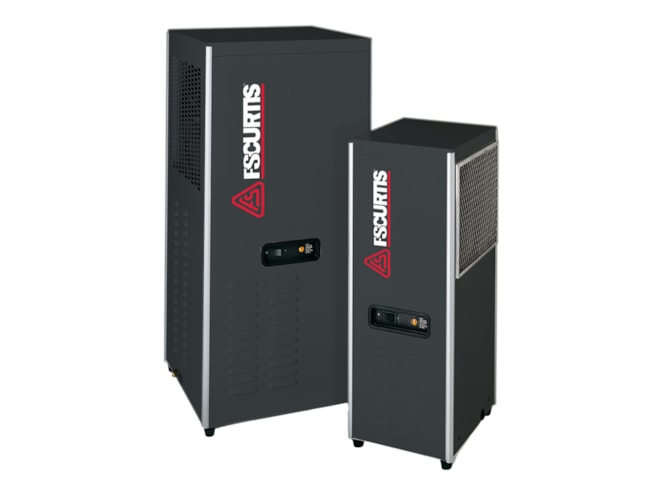

The high inlet options can operate with a maximum inlet temperature of 180°F. They feature moisture removal to ISO 8573-1: 2010 Quality Class 6 (50°F) pressure dew point and also use environmentally friendly R-134a and R-407c refrigerants. They contain  stainless steel brazed plate heat exchangers with an integral demister separator. The quick release front panel allows for access to dryer internals for routine maintenance.

Manufacturer Stock

Part Number Price Available
FRNP00025-0AXXXX
Show Configuration
$1,777.00 6 in stock
FRNP00010-0AXXXX
Show Configuration
$1,104.00 2 in stock
FRNP00015-0AXXXX
Show Configuration
$1,398.00 2 in stock
FRNP00050-0AXXXX
Show Configuration
$2,961.00 2 in stock
FRNP00075-0AXXXX
Show Configuration
$3,602.00 2 in stock
FRNPX00150-1XXXXX
Show Configuration
$5,047.00 2 in stock
FRNP00035-0AXXXX
Show Configuration
$2,271.00 1 in stock
FRNP00100-0AXXXX
Show Configuration
$3,898.00 1 in stock
FRNP00125-0AXXXX
Show Configuration
$4,373.00 1 in stock
FRNPX00300-4XXXXX
Show Configuration
$8,386.00 1 in stock

Interested in Other Part Numbers?

Other part numbers are available to order but are not currently in stock. Current availability for non-stock parts is "Call for availability". Click here to select options
