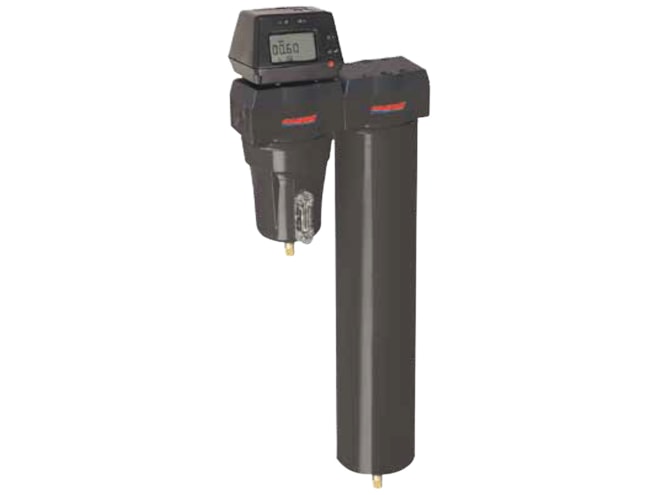

Champion CMD Series Membrane Air Dryer

1.39 to 138.1 SCFM, +40°F and -40°F flexible dew points.

Select your options below…

{{ option.description }}
"{{ option.noLongerAvailable }}" is no longer a valid option. Please choose from the current set of options.
Need help? Call one of our experts at 1-866-778-6572. We’re open Mon - Fri / 8:00 AM - 5:00 PM EST.
Starting Price: $1,196.34
Selected Options: + ${{ calcAdditionalCost | formatCurrency }}
${{ calcCost | formatCurrency }}
Configured Part Number: {{ calcPartNumber }}
Alternate Part Numbers: {{pn}}
{{pn}}
{{ calcAvailability }}
Request Quick Quote
Get Business Financing!
Payments as low as ${{monthlyPayments}}/mo

View Company Reviews
Highlights...
Michael Rotondo headshot

Michael Rotondo

Senior Applications Specialist - 2 years at Compressor World

Our experts are highly rated and specialize in a variety of compressed air applications; industrial, food & beverage, medical, lab, and remediation.

Need Help?

Connect one-on-one with an online expert.
Mon - Fri / 8:00 AM - 5:00 PM EST

Features

  • 1.39 to 138.1 SCFM at +40°F pressure dew point
  • 200 PSIG max operating pressure (membrane dryer only)
  • 150°F max air inlet temperature
  • Filter packages:
    • F1: One Grade E High Efficiency Pre-Filter
    • F2: Two Pre-Filters, One Grade C Air Line, One Grade F Maximum High Efficiency
  • Pre-filter packages include mounting brackets and interconnecting piping
  • 3 year warranty

 The Champion CMD Series Membrane Air Dryer removes water vapor to prevent it from condensing into harmful liquid water droplets inside compressed air systems. Powder painting, laboratory instruments, and food packaging machines with pneumatic components are examples of applications that cannot tolerate the presence of any moisture.

The CMD Series Membrane Dryer features a spiral-wrapped bundle of tube-shaped membrane fibers to remove water vapor from the compressed air stream. These fibers are engineered to separate moisture without reducing the oxygen content in the compressed air stream.
